MEE1S1505SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

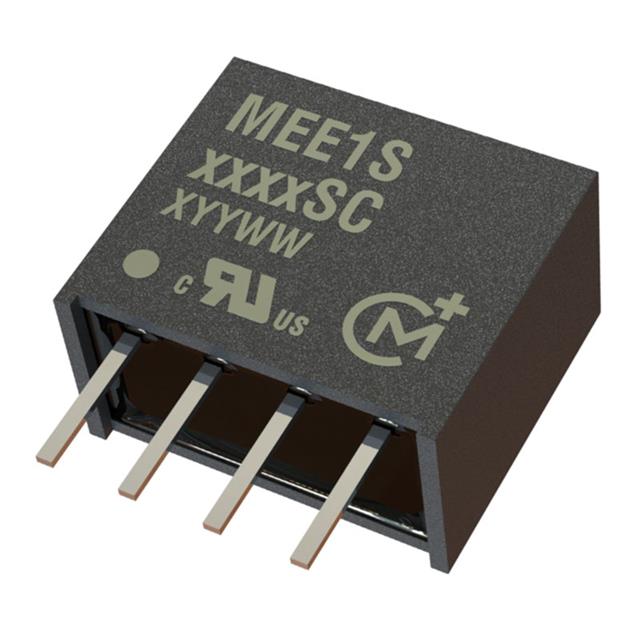

MEE1S1505SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEE1S1505SC	MEE1S15 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	200 mA	67 - 200 mA
Efficiency	83.5 %	83.5 - 86.5 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SIP Module	4-SIP Module, 8-DIP Module
Package / Case	-	4 Lead
Size / Dimension [x]	11.5 mm	11.5 mm
Size / Dimension [x]	0.45 in	0.45 in
Size / Dimension [y]	6 mm	6 - 9.8 mm
Size / Dimension [y]	0.24 "	0.24 - 0.39 "
Size / Dimension [z]	0.39 in	0.27 - 0.39 in
Size / Dimension [z]	10 mm	6.8 - 10 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	16.5 V	16.5 V
Voltage - Input (Min) [Min]	13.5 V	13.5 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	5 V	5 - 15 V

MEE1S15 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 15 V

Part	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Type	Voltage - Input (Max) [Max]	Package / Case	Package / Case
Murata Power Solutions Inc. MEE1S1515SC	15 V	85 °C	-40 °C	67 mA	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1000 V	Through Hole	ITE (Commercial)	13.5 V	1	86.5 %	Isolated Module	16.5 V	4-SIP Module
Murata Power Solutions Inc. MEE1S1512SC	12 V	85 °C	-40 °C	83 mA	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1000 V	Through Hole	ITE (Commercial)	13.5 V	1	85 %	Isolated Module	16.5 V	4-SIP Module
Murata Power Solutions Inc. MEE1S1505SC	5 V	85 °C	-40 °C	200 mA	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	1000 V	Through Hole	ITE (Commercial)	13.5 V	1	83.5 %	Isolated Module	16.5 V	4-SIP Module
Murata Power Solutions Inc. MEE1S1505DC	5 V	85 °C	-40 °C	200 mA	9.8 mm	0.39 "	11.5 mm	0.27 "	6.8 mm	0.45 in	1000 V	Through Hole	ITE (Commercial)	13.5 V	1	83.5 %	Isolated Module	16.5 V	8-DIP Module	4 Lead
