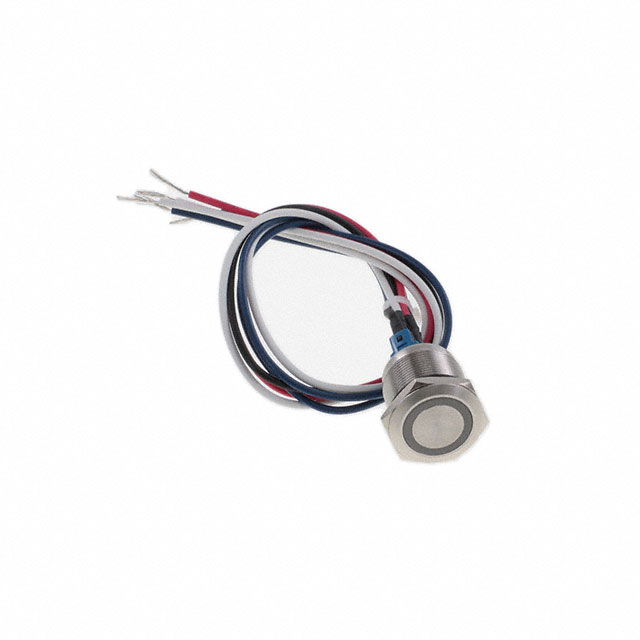

PV7FWT0SS-341

Active

E-Switch

SWITCH PB DPST-NO/NC 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB DPST-NO/NC 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV7FWT0SS-341

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Off, Off-On
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Circuit	Electrical Life	Ingress Protection	Illumination Type, Color	Illumination Voltage (Nominal)	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Voltage Rating - DC	Actuator Type	Mechanical Life	Mounting Type	Termination Style	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking
E-Switch PV7FWT0SS-3R1	DPST-NO/NC	50000 Cycles	IP65 - Dust Tight Water Resistant	Blue Green LED Red	1.8 VDC 2.8 VDC	2 A	Off-On On-Off	22 mm	Silver	48 V	Button Flush Round	1000000 Cycles	Panel Mount Front	Wire Leads	Anti-Vandal Illuminated	55 °C	-20 C	No Marking
E-Switch PV7FWT0SS-341	DPST-NO/NC	50000 Cycles	IP65 - Dust Tight Water Resistant	Blue LED	2.8 VDC	2 A	Off-On On-Off	22 mm	Silver	48 V	Button Flush Round	1000000 Cycles	Panel Mount Front	Wire Leads	Anti-Vandal Illuminated	55 °C	-20 C	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
