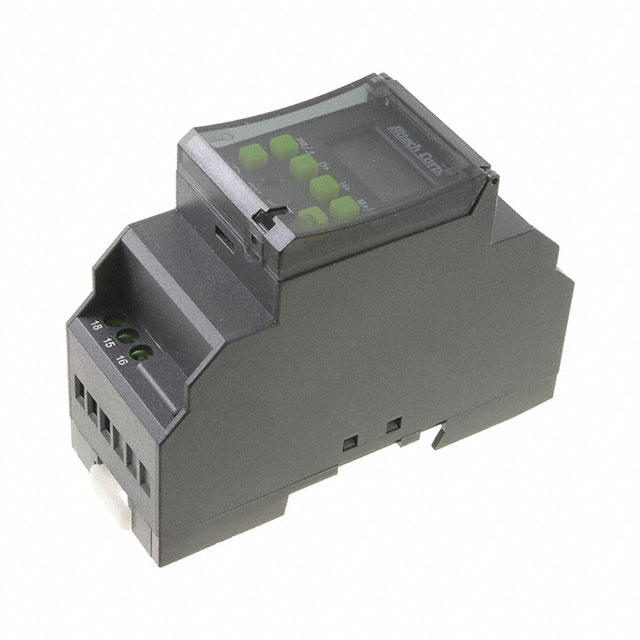

ATS-C120

Active

Altech Corporation

RELAY TIME DELAY 16A 240V

Search across all available documentation for this part.

Active

Altech Corporation

RELAY TIME DELAY 16A 240V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-C120	ATS-C Series

Contact Rating @ Voltage	16 A, 240 VAC	16 - 240 A
Delay Time [Max]	59 Sec	59 Sec
Delay Time [Min]	1 Sec	1 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal
Timing Adjustment Method	Up/Down Digit Keys	Up/Down Digit Keys
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	-	12 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	110 VAC	110 VAC

DIGITAL TIME SWITCH, 12VDC, DIN RAIL

Part	Voltage - Supply	Timing Adjustment Method	Termination Style	Contact Rating @ Voltage	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method	Function	Mounting Type	Relay Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Altech Corporation ATS-C12	12 VDC	Up/Down Digit Keys	Screw Terminal	16 A, 240 VAC	59 Sec	1 Sec	Input Voltage	Programmable (Multi-Function)	DIN Rail	Mechanical Relay
Altech Corporation ATS-C120		Up/Down Digit Keys	Screw Terminal	16 A, 240 VAC	59 Sec	1 Sec	Input Voltage	Programmable (Multi-Function)	DIN Rail	Mechanical Relay	110 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 1 Sec ~ 59 Sec Delay 16A @ 240VAC DIN Rail
