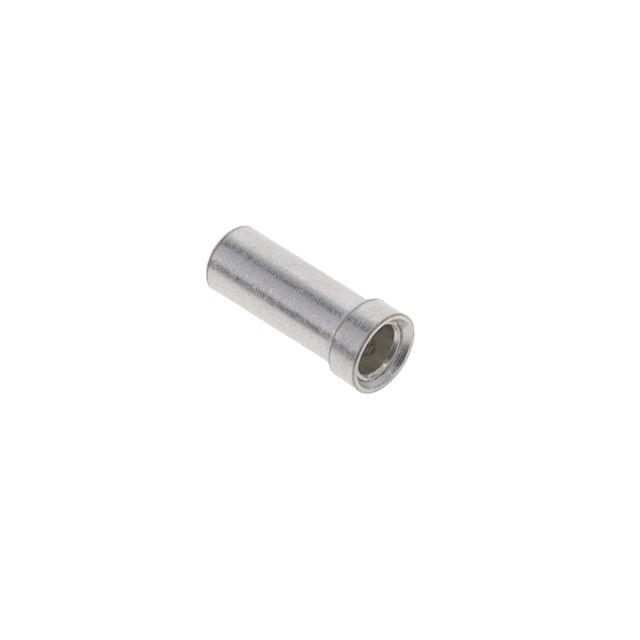

0363-0-15-80-23-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0363-0-15-80-23-80-10-0

Accepts Pin Diameter [Max]	0.065 in
Accepts Pin Diameter [Max]	1.65 mm
Accepts Pin Diameter [Min]	0.045 in
Accepts Pin Diameter [Min]	1.14 mm
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	3 mm, 0.118 "
Length - Overall	7.37 mm
Length - Overall	0.29 in
Mounting Hole Diameter [diameter]	0.102 in
Mounting Hole Diameter [diameter]	2.59 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.088 in
Pin Hole Diameter [diameter]	2.24 mm
Socket Depth	0.255 "
Socket Depth	6.48 mm
Tail Type	No Tail
Termination	Solder

Part	Contact Material	Flange Diameter [diameter]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth	Length - Overall	Length - Overall	Termination	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0363-0-15-01-23-01-10-0	Beryllium Copper	0.118 " 3 mm	Tin-Lead	0.102 in	2.59 mm	0.065 in	0.045 in	1.14 mm	1.65 mm	0.255 "	6.48 mm	7.37 mm	0.29 in	Solder	No Tail	0.088 in	2.24 mm	200 Áin	5.08 Ám	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0363-0-15-01-23-27-10-0	Beryllium Copper	0.118 " 3 mm	Gold	0.102 in	2.59 mm	0.065 in	0.045 in	1.14 mm	1.65 mm	0.255 "	6.48 mm	7.37 mm	0.29 in	Solder	No Tail	0.088 in	2.24 mm	30 Áin	0.76 Ám	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0363-0-15-01-23-14-10-0	Beryllium Copper	0.118 " 3 mm	Gold	0.102 in	2.59 mm	0.065 in	0.045 in	1.14 mm	1.65 mm	0.255 "	6.48 mm	7.37 mm	0.29 in	Solder	No Tail	0.088 in	2.24 mm	10 Áin	0.25 Ám	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0363-0-15-80-23-80-10-0	Beryllium Copper	0.118 " 3 mm	Tin	0.102 in	2.59 mm	0.065 in	0.045 in	1.14 mm	1.65 mm	0.255 "	6.48 mm	7.37 mm	0.29 in	Solder	No Tail	0.088 in	2.24 mm	200 Áin	5.08 Ám	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) No Tail Solder
