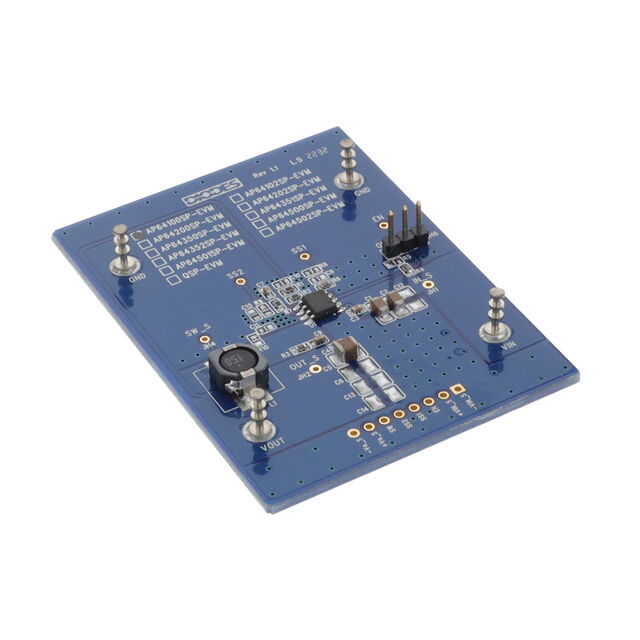

AP64100SP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64100

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AP64100

Technical Specifications

Parameters and characteristics for this part

Specification	AP64100SP-EVM

Board Type	Fully Populated
Contents	Board(s)
Current - Output	1 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated, 1 Non-Isolated Output
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP64100
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3.8 V
Voltage - Output	5 V, 1.2 V, 12 V, 2.5 V, 1.8 V, 3.3 V, 1.5 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Contents	Regulator Topology	Current - Output	Main Purpose	Supplied Contents	Utilized IC / Part	Voltage - Output
Diodes Inc AP64100SP-EVM	3.8 V	40 V	1 Non-Isolated Output Non-Isolated	1	Fully Populated	Board(s)	Buck	1 A	DC/DC Step Down	Board(s)	AP64100	1.2 V 1.5 V 1.8 V 2.5 V 3.3 V 5 V 12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.49

General part information

AP64100 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
