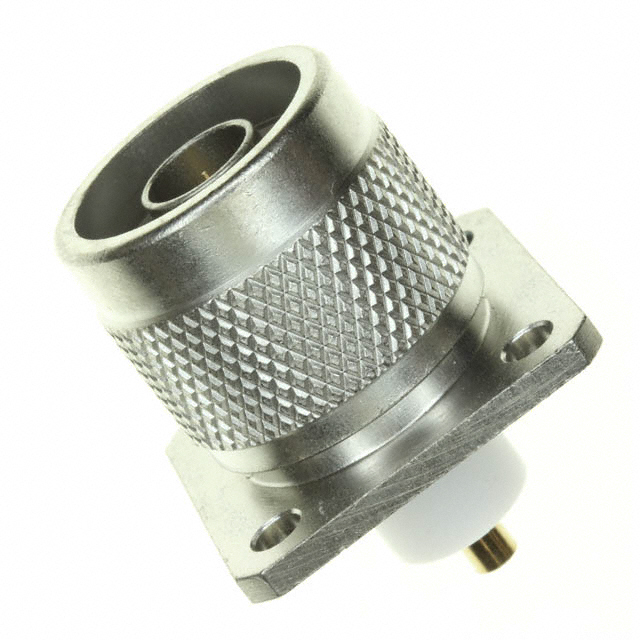

1057279-1

Active

TE Connectivity AMP Connectors

CONN N PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1057279-1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN N PLUG STR 50 OHM SOLDER

Part	Housing Color	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Termination	Connector Style	Shield Termination	Voltage Rating	Center Contact Plating	Connector Type	Impedance	Features	Dielectric Material	Center Contact Material	Mating Cycles	Frequency - Max [Max]	Body Finish	Number of Ports
TE Connectivity AMP Connectors 1057279-1	Silver	Brass	-65 ░C	165 °C	Flange	Solder	N Type	Solder	1000 VDC	Gold	Male Pin, Plug	50 Ohms	Extended Insulation	Polytetrafluoroethylene (PTFE)	Brass	500	11 GHz	Nickel	1

General part information

N Type Connector Plug, Male Pin 50 Ohms Panel Mount Solder
