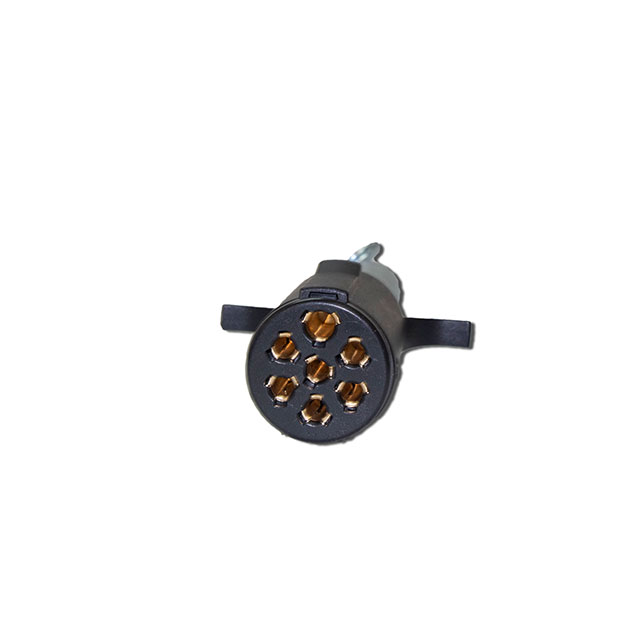

TC7-P3-N

Active

Switch Components

CONN PLUG FMALE 7POS SET SCREW

Search across all available documentation for this part.

Active

Switch Components

CONN PLUG FMALE 7POS SET SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC7-P3-N	TC7-P3 Series

Applications	Automotive	Automotive
Cable Opening [custom]	1 in	1 in
Cable Opening [custom]	25.4 mm	25.4 mm
Color	Black	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Material	-	Brass
Fastening Type	Push-Pull	Push-Pull
Features	Cable Clamp, Strain Relief	Cable Clamp, Strain Relief
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA), Polyacrylonitrile Butadiene Styrene (ABS)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions [custom]	1	1
Number of Positions [custom]	6	6
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic, Metal
Shell Material	-	Zinc
Shielding	Unshielded	Unshielded
Termination	Set Screw	Set Screw

CONN PLUG FMALE 7POS SET SCREW

Part	Cable Opening [custom]	Cable Opening [custom]	Number of Positions [custom]	Number of Positions [custom]	Fastening Type	Applications	Primary Material	Termination	Orientation	Shielding	Features	Connector Type	Insert Material	Color	Mounting Type	Contact Material	Shell Material
Switch Components TC7-P3-N	1 in	25.4 mm	1	6	Push-Pull	Automotive	Plastic	Set Screw	Keyed	Unshielded	Cable Clamp, Strain Relief	Female Sockets, Plug	Nylon, Polyamide (PA)	Black	Free Hanging (In-Line)
Switch Components TC7-P3-Z	1 in	25.4 mm	1	6	Push-Pull	Automotive	Metal	Set Screw	Keyed	Unshielded	Cable Clamp, Strain Relief	Female Sockets, Plug	Polyacrylonitrile Butadiene Styrene (ABS)	Silver	Free Hanging (In-Line)	Brass	Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 + PE) Position Circular Connector Plug, Female Sockets Set Screw
