BAT54WS
ActiveSMC Diode Solutions

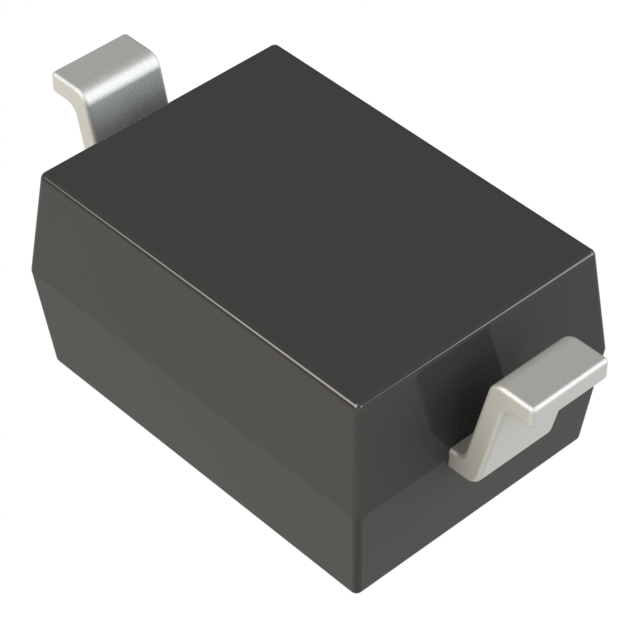

DIODE SCHOTTKY 30V 100MA SOD323
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BAT54WS
ActiveSMC Diode Solutions
DIODE SCHOTTKY 30V 100MA SOD323
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BAT54WS |
|---|---|
| Capacitance @ Vr, F | 10 pF |
| Current - Average Rectified (Io) | 100 mA |
| Current - Reverse Leakage @ Vr | 2 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-323, SC-76 |
| Reverse Recovery Time (trr) | 5 ns |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SOD-323 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
