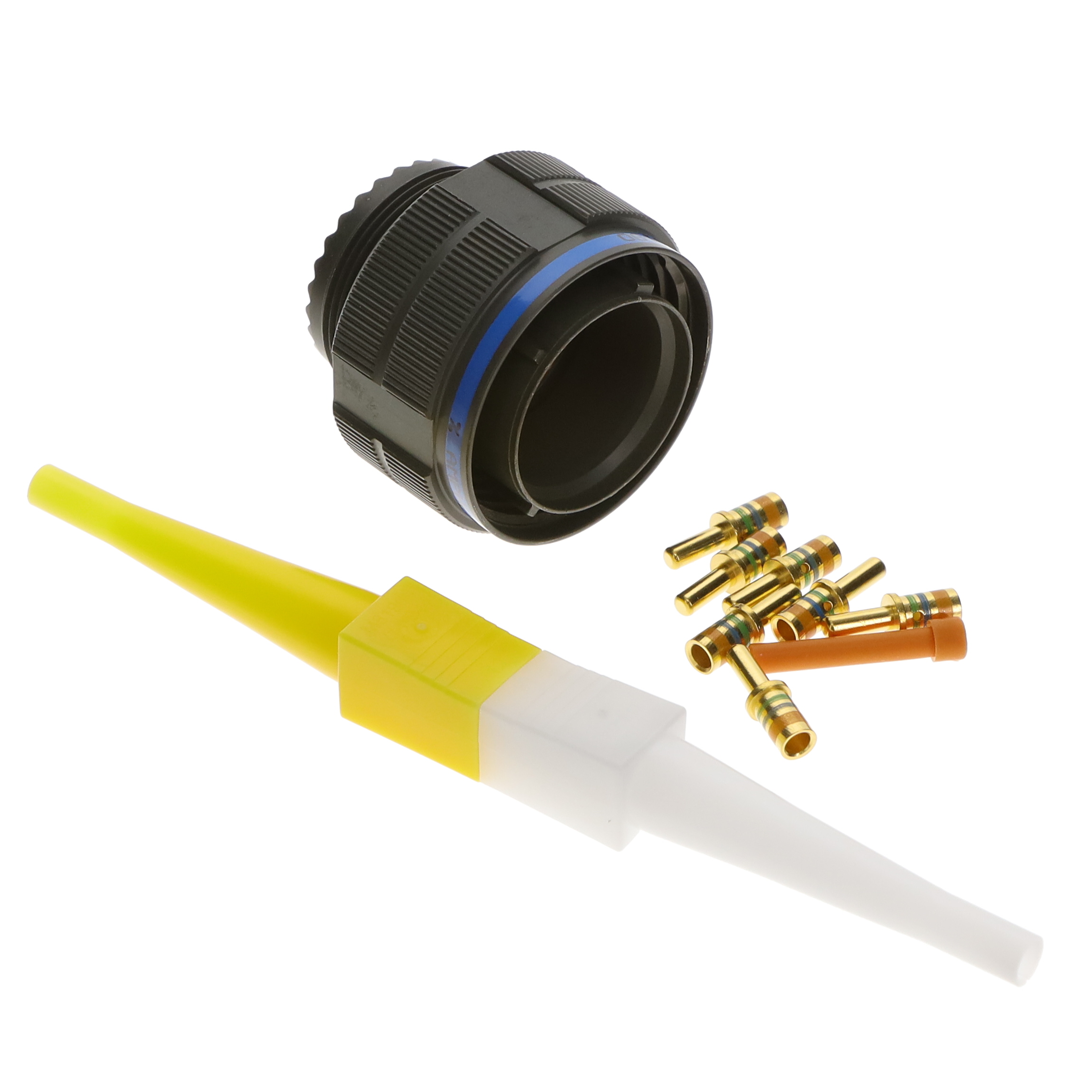

D38999/26WE6PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WE6PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WE6PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	17-6
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/26WE Series

Part	Applications	Shell Size - Insert	Connector Type	Shell Size, MIL	Features	Shell Material	Primary Material	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Orientation	Number of Positions	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Shell Finish	Grade	Qualification	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Type	Housing Color	Contact Size	Contact Type	Contact Shape	Note	Contact Size	Contact Size	Contact Size
Amphenol Aerospace Operations D38999/26WE6PN	Aerospace Aviation Marine Military	17-6	Male Pins Plug	E	Coupling Nut	Aluminum	Metal	Olive Drab	1.27 µm	50 µin	Free Hanging (In-Line)	Gold	N	6	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III
Amphenol Aerospace Operations D38999/26WE26JB	Aviation Marine Military		Female Sockets Plug	E	Coupling Nut Self Locking	Aluminum	Metal	Olive Drab	2.54 çm	100 çin	Free Hanging (In-Line)	Gold	B	26	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III	17	26
Amphenol Aerospace Operations D38999/26WE6HN	Aerospace Aviation Military	17-6	Male Pins Plug	E	Coupling Nut	Aluminum	Metal	Olive Drab	2.54 çm	100 çin	Free Hanging (In-Line)	Gold	N	6	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III
Amphenol Aerospace Operations D38999/26WE35PB-LC			Plug Housing	E	Coupling Nut	Aluminum					Free Hanging (In-Line)		B	55 positions	Environment Resistant	Shielded	-65 ░C	347 °F			Cadmium	Military	MIL-DTL-38999 Series III	17	35	For Male Pins	Olive Drab	22D	Crimp	Circular	Contacts Not Included
Amphenol Aerospace Operations D38999/26WE35HA	Aviation Marine Military		Male Pins Plug	E	Coupling Nut Self Locking	Aluminum	Metal	Olive Drab	2.54 çm	100 çin	Free Hanging (In-Line)	Gold	A	55 positions	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III	17	35
Amphenol Aerospace Operations D38999/26WE26PN	Aerospace Aviation Marine Military		Male Pins Plug	E	Coupling Nut	Aluminum	Metal	Olive Drab	1.27 µm	50 µin	Free Hanging (In-Line)	Gold	N	26	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III	17	26
Amphenol Aerospace Operations D38999/26WE6HN-LC		17-6	Plug Housing	E	Coupling Nut Self Locking	Aluminum					Free Hanging (In-Line)		N	6	Environment Resistant	Shielded	-65 ░C	347 °F			Cadmium	Military	MIL-DTL-38999 Series III			For Male Pins	Olive Drab		Crimp	Circular	Contacts Not Included	12
Amphenol Aerospace Operations D38999/26WE35HN	Aerospace Aviation Military		Male Pins Plug	E	Coupling Nut	Aluminum	Metal	Olive Drab	2.54 çm	100 çin	Free Hanging (In-Line)	Gold	N	55 positions	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III	17	35
Amphenol Aerospace Operations D38999/26WE99SN-LC			Plug Housing	E	Coupling Nut Self Locking	Aluminum					Free Hanging (In-Line)		N	23	Environment Resistant	Shielded	-65 ░C	347 °F			Cadmium	Military	MIL-DTL-38999 Series III	17	99	For Female Sockets	Olive Drab		Crimp	Circular	Contacts Not Included		16 20	2 21
Amphenol Aerospace Operations D38999/26WE35PC	Aerospace Aviation Marine Military		Male Pins Plug	E	Coupling Nut	Aluminum	Metal	Olive Drab	1.27 µm	50 µin	Free Hanging (In-Line)	Gold	C	55 positions	Environment Resistant	Shielded	-65 ░C	347 °F	Crimp	Copper Alloy	Olive Drab Cadmium	Military	MIL-DTL-38999 Series III	17	35

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.92
		10	$ 61.86
		25	$ 59.91
		50	$ 59.00
		100	$ 55.58
		250	$ 54.78
		500	$ 52.53
		1000	$ 51.13
	Bulk	1	$ 287.34
		10	$ 225.50
		25	$ 206.01
		50	$ 192.88

Description

General part information

D38999/26WE Series

6 Position Circular Connector Plug, Male Pins Crimp
