TP-VR-2405

Active

Tycon Systems Inc.

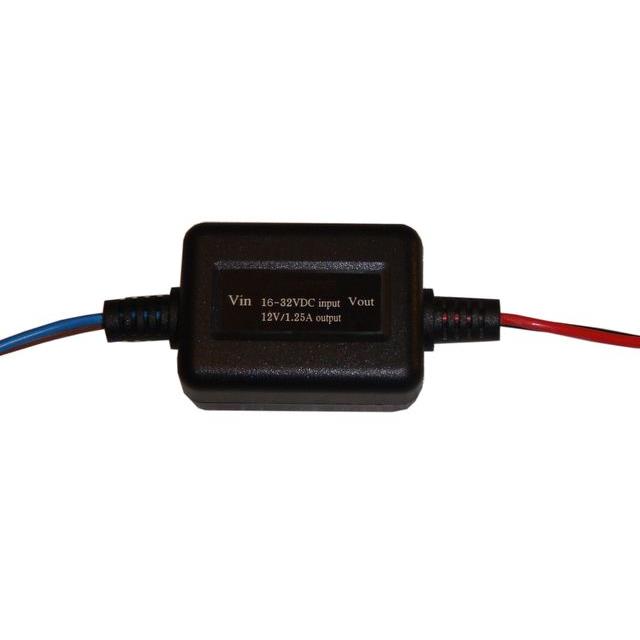

DC/DC CONVERTER 5V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TP-VR-2405

Active

Tycon Systems Inc.

DC/DC CONVERTER 5V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-VR-2405	TP-VR Series

Applications	ITE (Commercial)	ITE (Commercial)
Battery Cell Size	-	5 V
Charge Current - Max	-	1 A
Current - Output (Max) [Max]	3 A	1.25 - 4.46 A
Efficiency	80 %	80 - 85 %
Mounting Type	Chassis Mount	DIN Rail, Chassis Mount, Custom
Number of Cells	-	1
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 - -30 ░C
Power - Max	-	5 W
Power (Watts)	15 W	15 - 250 W
Size / Dimension	-	25.4 - 43.2 mm
Size / Dimension	-	69.85 - 188 mm
Size / Dimension	-	2.75 - 7.4 "
Size / Dimension	-	1 - 1.7 "
Size / Dimension	-	1.25 - 5.9 "
Size / Dimension	-	31.75 - 149.9 mm
Termination Style	-	USB A Receptacle
Type	Enclosed	Enclosed, USB In-Vehicle
Voltage - Input	-	32 V
Voltage - Input	-	10 V
Voltage - Input (Max) [Max]	32 V	15 - 72 V
Voltage - Input (Min) [Min]	10 VDC	10 - 36 V
Voltage - Isolation	-	1.5 kV
Voltage - Nominal	-	5 V
Voltage - Output 1	5 V	5 - 56 V

TP-VR Series

36-72VDC INPUT, 56V 1.25A 70W RE

Part	Number of Outputs	Current - Output (Max) [Max]	Mounting Type	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Efficiency	Power - Max [Max]	Charge Current - Max [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Battery Cell Size	Voltage - Nominal	Number of Cells
Tycon Systems Inc. TP-VRHP-4856	1	1.25 A	Chassis Mount, DIN Rail	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	72 V	36 V	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	56 V	85 %
Tycon Systems Inc. TP-VR-2405	1	3 A	Chassis Mount	15 W	ITE (Commercial)	65 °C	-40 °C	Enclosed	32 V	10 VDC								5 V	80 %
Tycon Systems Inc. TP-VR-2412	1	1.25 A	Chassis Mount	15 W	ITE (Commercial)	65 °C	-40 °C	Enclosed	32 V	18 V								12 V	80 %
Tycon Systems Inc. TP-VRHP-2424	1	2.9 A	Chassis Mount, DIN Rail	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	36 V	18 V	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	24 V	85 %
Tycon Systems Inc. TP-VRHP-1256	1	1.25 A	Chassis Mount, DIN Rail	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	15 V	10 VDC	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	56 V	85 %
Tycon Systems Inc. TP-VRHP-4824	1	2.9 A	Chassis Mount	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	72 V	36 V	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	24 V	85 %
Tycon Systems Inc. TP-VRHP-2456-250	1	4.46 A	Chassis Mount, DIN Rail	250 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	36 V	18 V	1.5 kV	38.1 mm, 43.2 mm	133.1 mm, 188 mm	5.24 ", 7.4 "	1.5 ", 1.7 in	3 ", 5.9 "	76.2 mm, 149.9 mm	56 V	83 %, 85 %
Tycon Systems Inc. TP-VR-2405-USB			Custom			65 °C	-40 °C	USB In-Vehicle				25.4 mm	69.85 mm	2.75 in	1 "	1.25 in	31.75 mm			5 W	1 A	32 V	10 V	USB A Receptacle	5 V	5 V	1
Tycon Systems Inc. TP-VRHP-1224	1	2.9 A	Chassis Mount	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	15 V	10 VDC	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	24 V	85 %
Tycon Systems Inc. TP-VRHP-4856-250	1	4.46 A	Chassis Mount	250 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	72 V	36 V	1.5 kV	43.2 mm	188 mm	7.4 "	1.7 in	5.9 "	149.9 mm	56 V	85 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 26.33

Description

General part information

TP-VR Series

Enclosed DC DC Converter 1 Output 5V 3A 32V Input
