T2800152101-000
ActiveTE Connectivity AMP Connectors

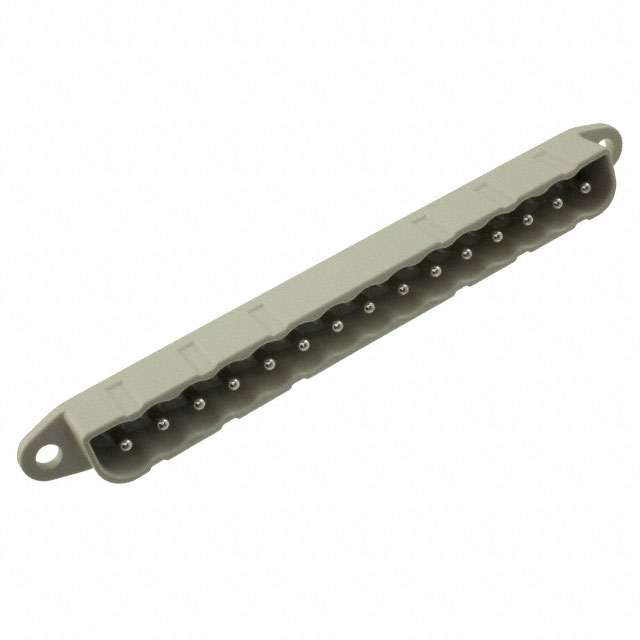

INSERT MALE 15POS+1GND HEE-015-M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T2800152101-000
ActiveTE Connectivity AMP Connectors
INSERT MALE 15POS+1GND HEE-015-M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T2800152101-000 |
|---|---|
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Solder |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.38 | |
| 10 | $ 5.56 | |||
| 30 | $ 5.42 | |||
| 50 | $ 5.27 | |||
| 100 | $ 5.15 | |||
| 250 | $ 8.28 | |||
| 500 | $ 7.89 | |||
| 1000 | $ 7.51 | |||
T2800 Series
INSERT MALE 15POS+1GND HEE-015-M
| Part | Housing Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Termination Style | Current Rating (Amps) | Voltage Rating | Gender |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2800152101-000 | Polyamide (PA), Nylon | 15+Ground | 125 °C | -40 °C | UL94 V-0 | Solder | 16 A | 200 V | Male |
Description
General part information
T2800 Series
Male Insert 15+Ground Position Solder
