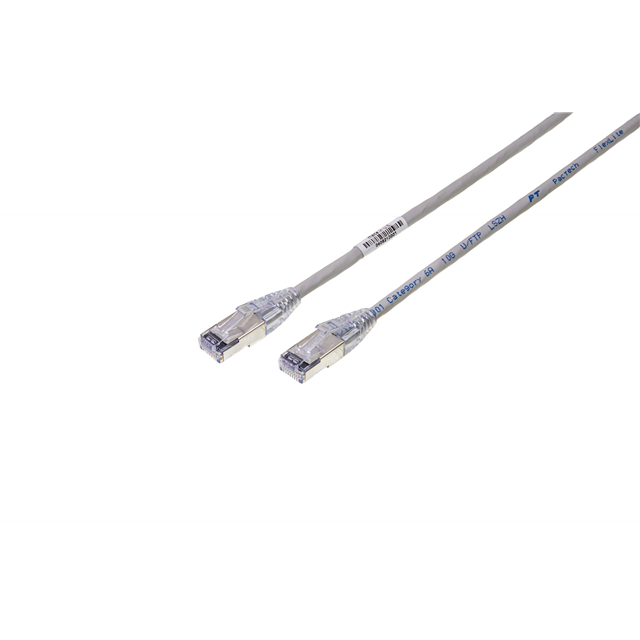

ZZ-S6AG-01.5-28LSZH-F

Active

Pactech

PREMIUM CAT6A 28AWG UFTP 1.5 GR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZZ-S6AG-01.5-28LSZH-F

Active

Pactech

PREMIUM CAT6A 28AWG UFTP 1.5 GR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZZ-S6AG-01.5-28LSZH-F	ZZ-S6AG Series

Cable Type	Round LSZH Cable	Round LSZH Cable
Color	Gray	Gray
Connector Type	Plug to Plug	Plug to Plug
Features	10G, TIA Cat6a Channel (+All) Test Passed, Serial Barcode, 28	10G, TIA Cat6a Channel (+All) Test Passed, Serial Barcode, 28
Features [diameter]	5 mm	5 mm
Features [radius]	20 mm	20 mm
Length	1.5 ft	1 - 90 ft
Length	457.2 mm	1.83 - 457.2 m
Length	-	2 - 30 '
Length	-	610 - 762 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Shielding	Shielded	Shielded
Style	Cat6a LSZH Environmental	Cat6a LSZH Environmental

ZZ-S6AG Series

PREMIUM CAT6A 28AWG UFTP 10 GR

Part	Cable Type	Connector Type	Mounting Type	Length	Length	Style	Features	Features [radius]	Features [diameter]	Shielding	Number of Positions/Contacts	Color	Length [x]	Length [x]
Pactech ZZ-S6AG-10-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	10 ft	3.05 m	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray
Pactech ZZ-S6AG-01-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	1 ft	304.8 mm	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray
Pactech ZZ-S6AG-02-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)			Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray	2 '	610 mm
Pactech ZZ-S6AG-08.5-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	8.5 ft	2.59 m	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray
Pactech ZZ-S6AG-06.5-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	6.5 ft	1.98 m	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray
Pactech ZZ-S6AG-01.5-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	1.5 ft	457.2 mm	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray
Pactech ZZ-S6AG-06-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	6 ft	1.83 m	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray
Pactech ZZ-S6AG-02.5-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)			Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray	30 "	762 mm
Pactech ZZ-S6AG-07.5-28LSZH-F	Round LSZH Cable	Plug to Plug	Free Hanging (In-Line)	90 in	2.28 m	Cat6a LSZH Environmental	10G, 28, Serial Barcode, TIA Cat6a Channel (+All) Test Passed	20 mm	5 mm	Shielded	8p8c (RJ45, Ethernet)	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 14.04
		10	$ 13.62
		20	$ 13.34
		40	$ 12.92

Description

General part information

ZZ-S6AG Series

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 1.50' (457.2mm) Shielded
