EN3C18M26CX
ActiveSwitchcraft Inc.

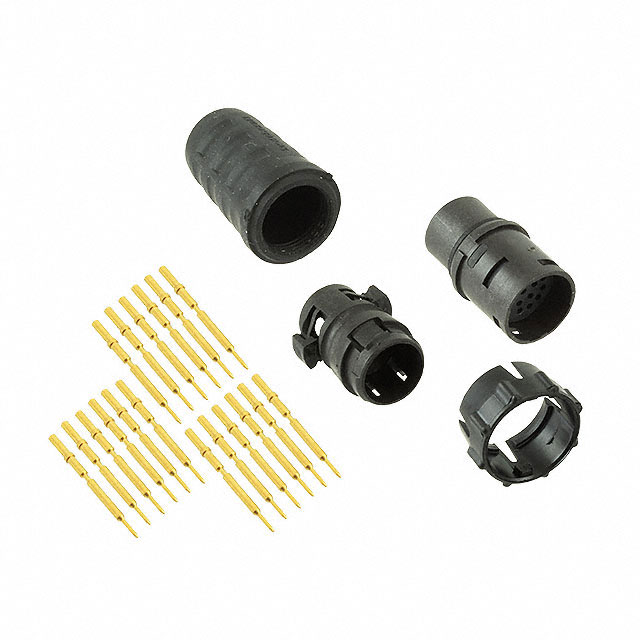

CONN PLUG MALE 18POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3C18M26CX
ActiveSwitchcraft Inc.
CONN PLUG MALE 18POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3C18M26CX | EN3C18 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 18 | 18 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3C18 Series
CONN PLUG MALE 18P GOLD SLDR CUP
| Part | Applications | Contact Finish - Mating | Voltage Rating | Connector Type | Backshell Material, Plating | Color | Primary Material | Insert Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [diameter] | Cable Opening [diameter] | Number of Positions | Ingress Protection | Features | Fastening Type | Orientation | Contact Material | Mounting Type | Shielding | Current Rating (Amps) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3C18M26X | General Purpose, Instrumentation, Marine, Medical | Gold | 250 VAC | Male Pins, Plug | Thermoplastic | Black | Plastic | Elastomer | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | 18 | IP66/IP68 | Backshell, Cable Clamp, Coupling Nut | Bayonet Lock | Keyed | Copper Alloy | Free Hanging (In-Line) | Unshielded | 3 A | |
Switchcraft Inc. EN3C18F26SX | General Purpose, Instrumentation, Marine, Medical | Gold | 250 VAC | Female Sockets, Plug | Thermoplastic | Black | Plastic | Elastomer | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | 18 | IP66/IP68 | Backshell, Cable Clamp, Coupling Nut | Bayonet Lock | Keyed | Copper Alloy | Free Hanging (In-Line) | Unshielded | 3 A | |
Switchcraft Inc. EN3C18M26CX | General Purpose, Instrumentation, Marine, Medical | Gold | 250 VAC | Male Pins, Plug | Thermoplastic | Black | Plastic | Elastomer | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | 18 | IP66/IP68 | Backshell, Cable Clamp, Coupling Nut | Bayonet Lock | Keyed | Copper Alloy | Free Hanging (In-Line) | Unshielded | 3 A | Crimp |
Switchcraft Inc. EN3C18F26CX | General Purpose, Instrumentation, Marine, Medical | Gold | 250 VAC | Female Sockets, Plug | Thermoplastic | Black | Plastic | Elastomer | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | 18 | IP66/IP68 | Backshell, Cable Clamp, Coupling Nut | Bayonet Lock | Keyed | Copper Alloy | Free Hanging (In-Line) | Unshielded | 3 A | Crimp |
Switchcraft Inc. EN3C18F26X | General Purpose, Instrumentation, Marine, Medical | Gold | 250 VAC | Female Sockets, Plug | Thermoplastic | Black | Plastic | Elastomer | UL94 V-0 | 65 °C | -40 °C | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | 18 | IP66/IP68 | Backshell, Cable Clamp, Coupling Nut | Bayonet Lock | Keyed | Copper Alloy | Free Hanging (In-Line) | Unshielded | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.15 | |
| 10 | $ 15.37 | |||
Description
General part information
EN3C18 Series
18 Position Circular Connector Plug, Male Pins Crimp
