307-038-456-201
ActiveEDAC Inc.

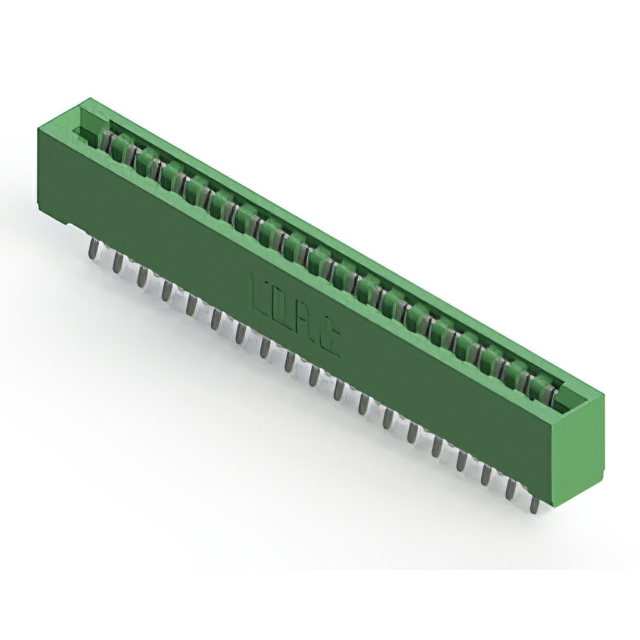

CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-038-456-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-038-456-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-038 Series
...
| Part | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Contact Material | Termination Rows | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Number of Rows | Number of Positions/Bay/Row [custom] | Contact Finish | Pitch [x] | Pitch [x] | Gender | Color | Termination | Read Out | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Semi Bellows | Board Edge Straddle Mount | Copper Alloy | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 2 | 19 | Tin | 0.156 in | 3.96 mm | Female | Green | Solder | Dual | |||
EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Semi Bellows | Through Hole | Copper Alloy | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 2 | 19 | Tin | 0.156 in | 3.96 mm | Female | Green | Solder Eyelet(s) | Dual | Card Guides | ||||
EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Semi Bellows | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 1 | 38 | Tin | 0.156 in | 3.96 mm | Female | Green | Wire Wrap | Single | Card Guides | ||||
EDAC Inc. | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | -40 °C | 105 ░C | Semi Bellows | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 1 | 38 | Gold | 0.156 in | 3.96 mm | Female | Green | Solder Eyelet(s) | Single | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | Semi Bellows | Through Hole Right Angle | Copper Alloy | 1 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 76 | 2 | 38 | Tin | 0.156 in | 3.96 mm | Female | Green | Solder | Dual | ||||||
EDAC Inc. | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | Semi Bellows | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 1 | 38 | Gold | 0.156 in | 3.96 mm | Female | Green | Wire Wrap | Single | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Semi Bellows | Through Hole Right Angle | Copper Alloy | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 2 | 19 | Gold | 0.156 in | 3.96 mm | Female | Green | Solder Wire Wrap | Dual | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | Semi Bellows | Board Edge Straddle Mount | Copper Alloy | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 2 | 19 | Tin | 0.156 in | 3.96 mm | Female | Green | Solder | Dual | ||||||
EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Semi Bellows | Board Edge Straddle Mount | Copper Alloy | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 2 | 19 | Gold | 0.156 in | 3.96 mm | Female | Green | Solder | Dual | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Semi Bellows | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 38 | 1 | 38 | Tin | 0.156 in | 3.96 mm | Female | Green | Wire Wrap | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 13.42 | |
Description
General part information
307-038 Series
38 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
Documents
Technical documentation and resources
