BT2M-M5
ActivePanduit Corp

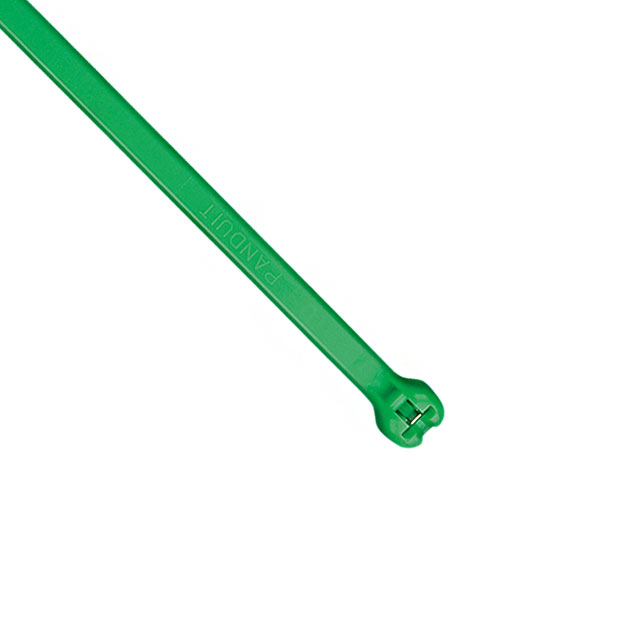

CBL TIE LOCKING GREEN 18LBS 7.9"
Deep-Dive with AI
Search across all available documentation for this part.

BT2M-M5
ActivePanduit Corp
CBL TIE LOCKING GREEN 18LBS 7.9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | BT2M-M5 | BT2M Series |
---|---|---|
Bundle Diameter [diameter] | 50.8 mm | 50.8 mm |
Bundle Diameter [diameter] | 2 in | 2 in |
Color | Green | Green, Natural, Gray, Black |
Features | - | Heat Stabilized, Weather Resistant |
Length - Actual [x] | 7.9 in | 7.9 in |
Length - Actual [x] | 0.658 ft | 0.658 ft |
Length - Actual [x] | 200.66 mm | 200.66 mm |
Length - Approximate | 8 in | 8 in |
Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Tensile Strength | 18 lbs | 18 lbs |
Tensile Strength | 8.16 kg | 8.16 kg |
Width [x] | 0.095 in | 0.095 in |
Width [x] | 2.41 mm | 2.41 mm |
Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
BT2M Series
CBL TIE LOCKING GREEN 18LBS 7.9"
Part | Length - Actual [x] | Length - Actual [x] | Length - Actual [x] | Wire/Cable Tie Type | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Material | Mounting Type | Tensile Strength | Tensile Strength | Color | Width [x] | Width [x] | Length - Approximate | Features |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp BT2M-M5 | 7.9 in | 0.658 ft | 200.66 mm | Locking, Standard | 50.8 mm | 2 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 18 lbs | 8.16 kg | Green | 0.095 in | 2.41 mm | 8 in | |
Panduit Corp BT2M-C | 7.9 in | 0.658 ft | 200.66 mm | Locking, Standard | 50.8 mm | 2 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 18 lbs | 8.16 kg | Natural | 0.095 in | 2.41 mm | 8 in | |
Panduit Corp BT2M-M8 | 7.9 in | 0.658 ft | 200.66 mm | Locking, Standard | 50.8 mm | 2 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 18 lbs | 8.16 kg | Gray | 0.095 in | 2.41 mm | 8 in | |
Panduit Corp BT2M-M30 | 7.9 in | 0.658 ft | 200.66 mm | Locking, Standard | 50.8 mm | 2 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 18 lbs | 8.16 kg | Black | 0.095 in | 2.41 mm | 8 in | Heat Stabilized |
Panduit Corp BT2M-M3 | 7.9 in | 0.658 ft | 200.66 mm | Locking, Standard | 50.8 mm | 2 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 18 lbs | 8.16 kg | 0.095 in | 2.41 mm | 8 in | ||
Panduit Corp BT2M-M0 | 7.9 in | 0.658 ft | 200.66 mm | Locking, Standard | 50.8 mm | 2 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 18 lbs | 8.16 kg | Black | 0.095 in | 2.41 mm | 8 in | Weather Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Description
General part information
BT2M Series
Standard, Locking Green 2.00" (50.80mm) 0.095" (2.41mm) 18 lbs (8.16 kg)
Documents
Technical documentation and resources
