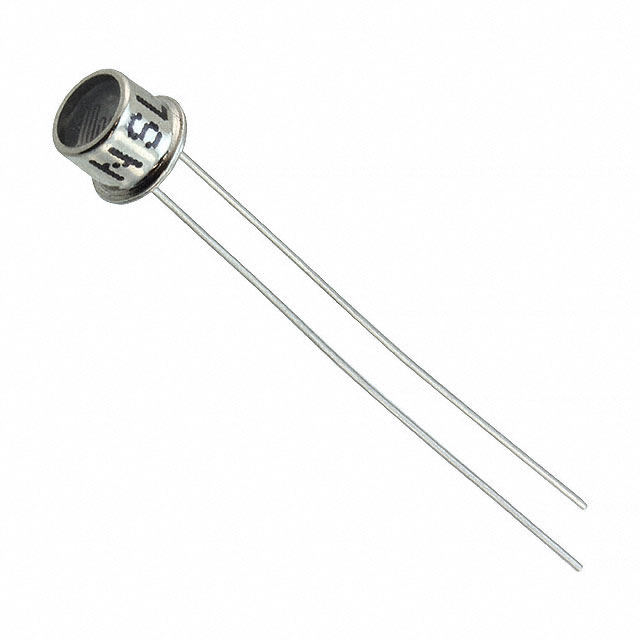

NSL-06S53

Active

Advanced Photonix

CDS PHOTORESISTOR

Search across all available documentation for this part.

Active

Advanced Photonix

CDS PHOTORESISTOR

Technical Specifications

Parameters and characteristics for this part

Specification	NSL-06S53

Cell Resistance (Min) @ Dark [Min]	20 MOhms
Cell Resistance @ Illuminance [Max]	100 kOhms
Cell Resistance @ Illuminance [Min]	20 Ohms
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	TO-18
Voltage - Max [Max]	100 Vpk
Wavelength	550 nm

CDS PHOTORESISTOR

Part	Wavelength	Supplier Device Package	Cell Resistance @ Illuminance [Min]	Cell Resistance @ Illuminance [Max]	Mounting Type	Voltage - Max [Max]	Package / Case	Cell Resistance (Min) @ Dark [Min]
Advanced Photonix NSL-06S53	550 nm	TO-18	20 Ohms	100 kOhms	Through Hole	100 Vpk	Radial	20 MOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CdS Cells 550nm 20 ~ 100kOhms @ 10 lux

Technical documentation and resources
