01311.38T.01

Active

Prysmian Group

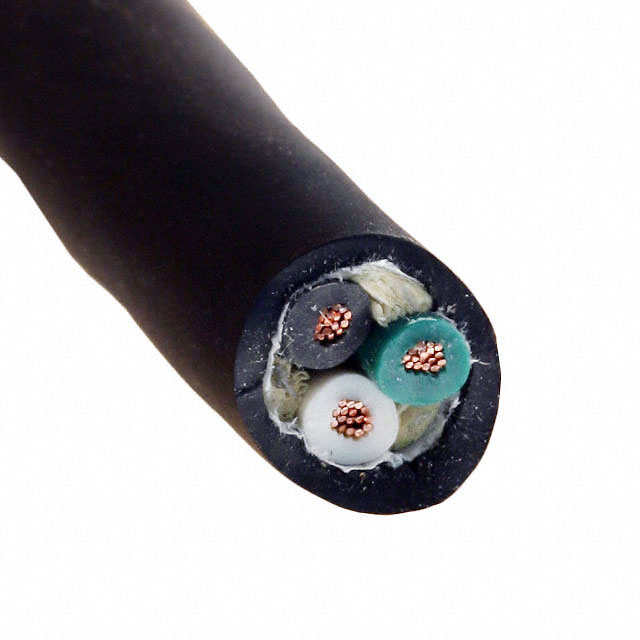

CABLE 3COND 18AWG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

01311.38T.01

Active

Prysmian Group

CABLE 3COND 18AWG BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	01311.38T.01	01311 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Annealed Bare, Copper, Bare
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.305 in	0.305 in
Jacket (Insulation) Diameter [diameter]	7.75 mm	7.75 mm
Jacket (Insulation) Material	Carolprene	Carolprene
Jacket (Insulation) Thickness	0.762 mm	0.762 mm
Jacket (Insulation) Thickness	0.03 in	0.03 in
Jacket Color	Black	Black
Length	-	1000 - 3000 ft
Length	-	76.2 - 762 m
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	3	3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Voltage	300 V	300 V
Wire Gauge	18 AWG	18 AWG

01311 Series

CABLE 3COND 18AWG BLACK

Part	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Cable Type	Length	Length	Length [x]	Length [x]
Prysmian Group 01311R.46.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Annealed Bare	Multi-Conductor
Prysmian Group 01311.44.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor	2500 ft	762 m
Prysmian Group 01311.99.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor
Prysmian Group 01311.46.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor
Prysmian Group 01311.35.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Annealed Bare	Multi-Conductor	3000 "	76.2 m
Prysmian Group 01311.35T.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor	3000 "	76.2 m
Prysmian Group 01311.R5.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor	3000 "	76.2 m
Prysmian Group 01311.41T.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor	1000 ft, 3000 "	76.2 m, 304.8 m	30.5 m	100 ft
Prysmian Group 01311.38T.01	3	Carolprene	Ethylene Propylene Terpolymer Rubber (EPDM)	18 AWG	0.762 mm	0.03 in	Black	90 °C	-40 °C	0.305 in	7.75 mm	16	30 AWG	300 V	Copper, Bare	Multi-Conductor			152.4 m	500 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.62

Description

General part information

01311 Series

3 Conductor Multi-Conductor Cable Black 18 AWG 500.0' (152.4m)

Documents

Technical documentation and resources

No documents available
