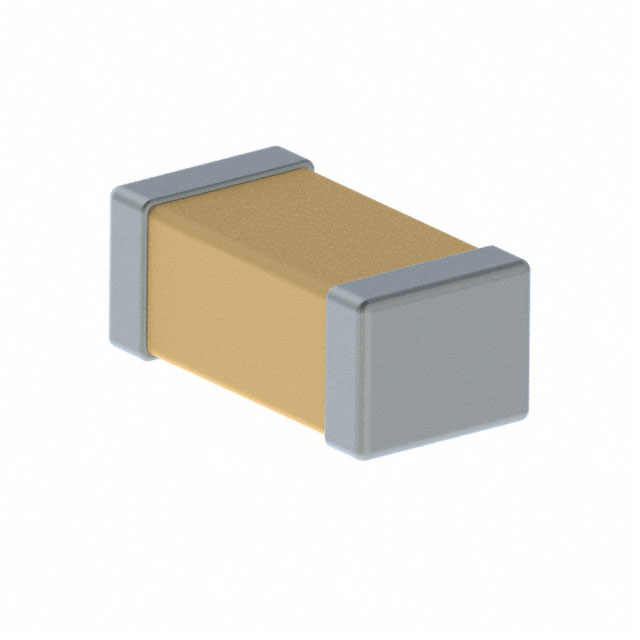

C1206N103K1XRL7189
ActiveKEMET
CAP,CERAMIC,10NF,100VDC,10% -TOL,10% +TOL,BX TC CODE,-15,15% TC,CDR MIL STYLE,1206 CASE
Deep-Dive with AI
Search across all available documentation for this part.
C1206N103K1XRL7189
ActiveKEMET
CAP,CERAMIC,10NF,100VDC,10% -TOL,10% +TOL,BX TC CODE,-15,15% TC,CDR MIL STYLE,1206 CASE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1206N103K1XRL7189 |
|---|---|
| Applications | High Reliability |
| Capacitance | 10000 pF |
| Failure Rate | R (0.01%) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Temperature Coefficient | BX |
| Thickness (Max) [Max] | 0.051 in |
| Thickness (Max) [Max] | 1.3 mm |
| Tolerance | 10 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.09 | |||
| 100 | $ 0.80 | |||
| 1000 | $ 0.66 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.09 | |||
| 100 | $ 0.80 | |||
| 1000 | $ 0.66 | |||
| Tape & Reel (TR) | 2500 | $ 0.62 | ||
| 5000 | $ 0.60 | |||
| 7500 | $ 0.59 | |||
| 12500 | $ 0.57 | |||
Description
General part information
C1206N103 Series
10000 pF ±10% 100V Ceramic Capacitor BX 1206 (3216 Metric)
