ATS-16D-57-C2-R0

Active

Advanced Thermal Solutions Inc.

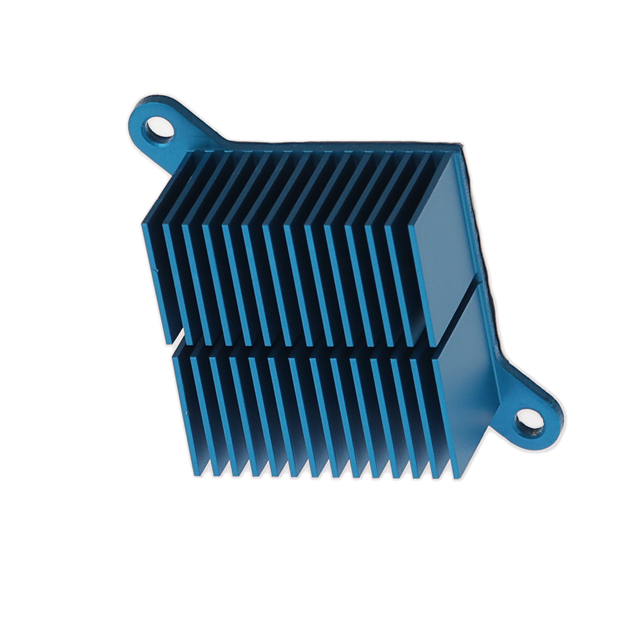

HEATSINK 35X35X20MM L-TAB T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-16D-57-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 35X35X20MM L-TAB T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-16D-57-C2-R0

Attachment Method	Push Pin
Fin Height [z]	0.79 in
Fin Height [z]	20 mm
Length [x]	1.378 in
Length [x]	35 mm
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	100 LFM, 13.16 °C/W
Type	Top Mount
Width	35 mm
Width [x]	1.378 in

ATS-16D Series

...

Part	Material	Fin Height	Fin Height	Length [x]	Length [x]	Width [x]	Width	Thermal Resistance @ Forced Air Flow	Attachment Method	Type	Shape	Package Cooled	Material Finish	Fin Height [z]	Fin Height [z]	Length	Length	Width [y]	Width [y]	Width	Width [x]
Advanced Thermal Solutions Inc. ATS-16D-178-C3-R0	Aluminum	0.984 in	25 mm	1.378 in	35 mm	1.378 in	35 mm	4.95 °C/W	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized
Advanced Thermal Solutions Inc. ATS-16D-09-C2-R0	Aluminum			1.772 "		1.772 in	45 mm	10.58 °C/W 100 LFM	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized	0.79 in	20 mm	45 mm
Advanced Thermal Solutions Inc. ATS-16D-41-C3-R0	Aluminum							10.07 °C/W	Push Pin	Top Mount	Rectangular Fins	ASIC BGA CPU LGA	Blue Anodized	0.7 in	17.78 mm	57.9 mm	2.28 "	60.96 mm	2.4 in
Advanced Thermal Solutions Inc. ATS-16D-137-C1-R0	Aluminum					0.984 in	25 mm		Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized	0.394 in	10 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-16D-48-C1-R0	Aluminum	1.378 in	35 mm			0.984 in	25 mm	7.44 °C/W 100 LFM	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized			25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-16D-170-C1-R0	Aluminum	0.59 "	15 mm	1.181 in	30 mm		30 mm	10.02 °C/W 100 LFM	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized							1.181 in
Advanced Thermal Solutions Inc. ATS-16D-168-C3-R0	Aluminum	0.984 in	25 mm			0.984 in	25 mm	7.28 °C/W	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized			25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-16D-12-C1-R0	Aluminum			1.969 in	50 mm			15.84 °C/W	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized	0.5 in	12.7 mm			50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-16D-57-C2-R0	Aluminum			1.378 in	35 mm	1.378 in	35 mm	13.16 °C/W 100 LFM	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized	0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-16D-03-C2-R0	Aluminum	0.59 "	15 mm			1.575 in		15.85 °C/W	Push Pin	Top Mount	Fins Square	ASIC BGA CPU LGA	Blue Anodized								40 mm
