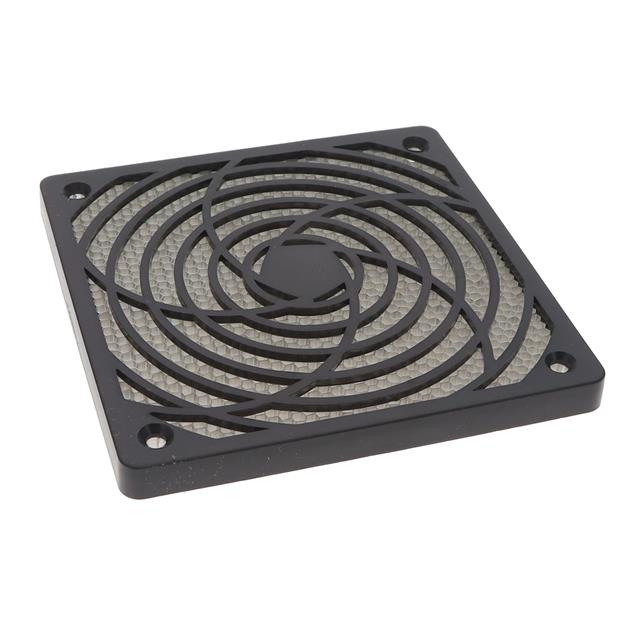

KEMVENT120

Active

TE Kemtron

EMI FAN VENT 120MM

Search across all available documentation for this part.

Active

TE Kemtron

EMI FAN VENT 120MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Shield, 1-Piece 4.921" (125.00mm) X 4.921" (125.00mm) Vent Holes in Pattern Surface Mount

Technical documentation and resources

Part	Length - Overall [x]	Length - Overall [x]	Type	Width - Overall [y]	Width - Overall [y]	Height - Overall [z]	Height - Overall [z]	Mounting Type	Ventilation	Width - Overall [x]	Width - Overall [x]	Height - Overall	Height - Overall
TE Kemtron KEMVENT120	4.921 in	125 mm	Shield, 1-Piece	125 mm	4.921 in	10.35 mm	0.407 in	Surface Mount	Vent Holes in Pattern
TE Kemtron KEMVENT40	1.795 in	45.6 mm	Shield, 1-Piece					Surface Mount	Vent Holes in Pattern	1.795 in	45.6 mm	9 mm	0.354 in
TE Kemtron KEMVENT80	3.327 in	84.5 mm	Shield, 1-Piece	84.5 mm	3.327 in	10.35 mm	0.407 in	Surface Mount	Vent Holes in Pattern
