325000-04-0
ActiveCurtis Industries

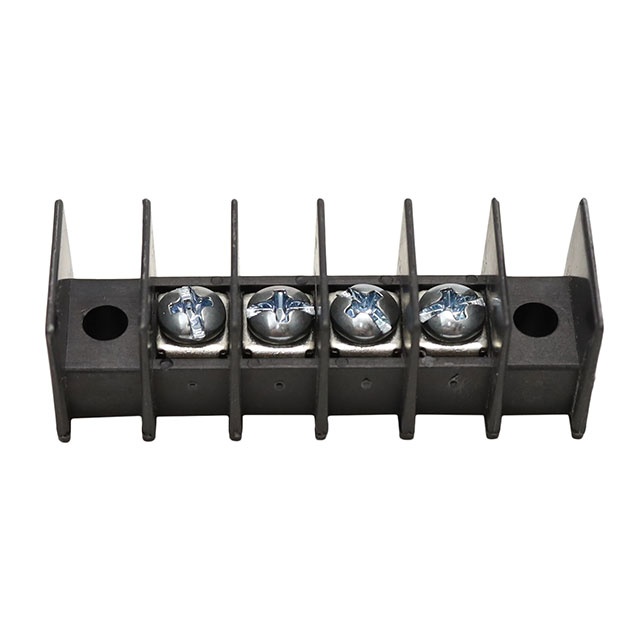

CONN BARRIER STRIP 4CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325000-04-0
ActiveCurtis Industries
CONN BARRIER STRIP 4CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325000-04-0 | 325000 Series |
|---|---|---|
| Barrier Type | - | 2 Wall (Dual) |
| Bottom Termination | - | Closed |
| Current Rating (Amps) | - | 15 A |
| Features | - | Flange |
| Material - Insulation | - | Polypropylene (PP) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | - | Panel, Chassis |
| null | - | |
| Number of Circuits | - | 8 |
| Number of Circuits | - | 1 - 25 |
| Number of Rows | - | 1 |
| Number of Wire Entries | - | 2 - 25 |
| Number of Wire Entries | - | 1 - 23 |
| Operating Temperature | - | 105 C |
| Pitch | - | 8.26 mm |
| Pitch | - | 0.325 in |
| Terminal Block Type | - | Barrier Block |
| Terminal Screw Material | - | Steel |
| Top Termination | - | Screws |
| Voltage Rating | - | 300 VDC |
| Wire Gauge | - | 14 AWG |
| Wire Gauge | - | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
325000 Series
CONN BARRIER STRIP 9CIRC 0.325"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Mounting Type | Operating Temperature | Barrier Type | Voltage Rating | Number of Wire Entries | Current Rating (Amps) | Terminal Block Type | Material Flammability Rating | Number of Rows | Material - Insulation | Features | Bottom Termination | Terminal Screw Material | Top Termination | Number of Circuits [custom] | Number of Circuits | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325000-09-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 9 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | |||
Curtis Industries 325000-08-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 8 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 8 | ||
Curtis Industries 325000-21-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 21 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 21 | ||
Curtis Industries 325000-11-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 11 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 11 | ||
Curtis Industries 325000-23-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 23 | 23 | ||
Curtis Industries 325000-19-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 19 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 19 | ||
Curtis Industries 325000-01-0 | 14 AWG | 22 AWG | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 1 | 1 | ||||
Curtis Industries 325000-04-0 | |||||||||||||||||||||
Curtis Industries 325000-10-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 10 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 10 | ||
Curtis Industries 325000-20-0 | 14 AWG | 22 AWG | 8.26 mm | 0.325 in | Chassis, Panel | 105 C | 2 Wall (Dual) | 300 VDC | 20 | 15 A | Barrier Block | UL94 V-0 | 1 | Polypropylene (PP) | Flange | Closed | Steel | Screws | 20 |
Description
General part information
325000 Series
4 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
