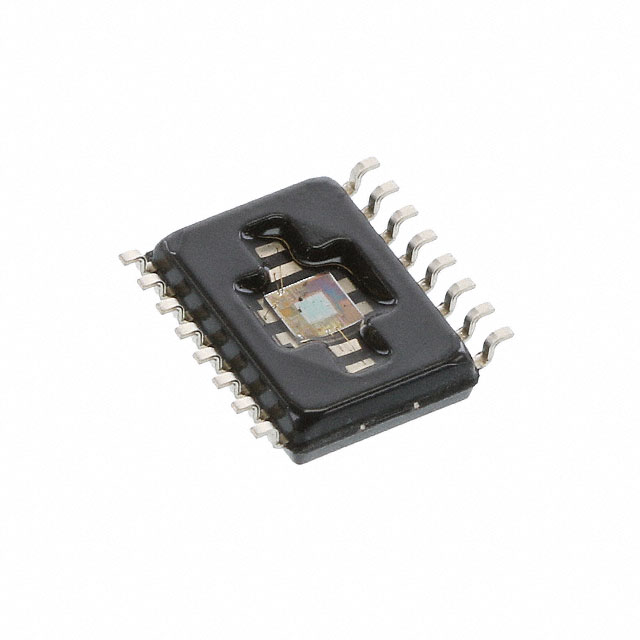

MLX90809LXG-EAD-000-SP

Active

Melexis Technologies NV

SENSOR 0.73PSID 4.5V 16SOIC

Search across all available documentation for this part.

Active

Melexis Technologies NV

SENSOR 0.73PSID 4.5V 16SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90809LXG-EAD-000-SP

Accuracy	1.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Mounting Type	Surface Mount
Operating Pressure [Max]	5 kPa
Operating Pressure [Max]	0.73 PSI
Operating Pressure [Min]	-15.23 PSI
Operating Pressure [Min]	-105 kPa
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Exposed Pad, 16-SOIC
Package / Case [custom]	0.295 in
Package / Case [custom]	7.5 mm
Port Style	No Port
Pressure Type	Differential
Supplier Device Package	16-SOIC
Termination Style	Gull Wing
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Termination Style	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Port Style	Accuracy	Output Type	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Features	Applications	Package / Case	Package / Case [custom]	Package / Case [custom]	Pressure Type	Mounting Type
Melexis Technologies NV MLX90809LXG-EAD-000-SP	Gull Wing	0.5 V	4.5 V	4.5 V	5.5 V	16-SOIC	No Port	1.5 %	Analog Voltage	5 kPa	-15.23 PSI	0.73 PSI	-105 kPa	Amplified Output Temperature Compensated	Board Mount	16-SOIC Exposed Pad	0.295 in	7.5 mm	Differential	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor -15.23PSI ~ 0.73PSI (-105kPa ~ 5kPa) Differential 0.5 V ~ 4.5 V 16-SOIC (0.295", 7.50mm Width) Exposed Pad
