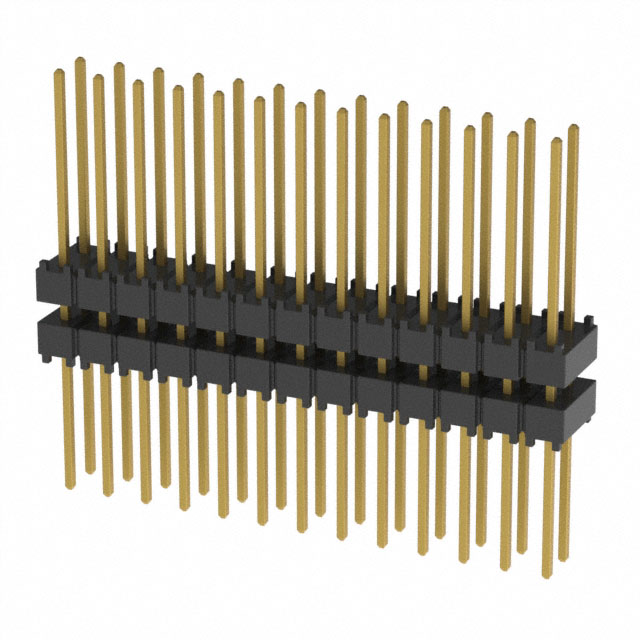

EW-13-12-G-D-250

Active

Samtec Inc.

CONN HDR 26POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 26POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	EW-13-12-G-D-250

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.03 in
Length - Overall Pin [x]	26.162 mm
Length - Post (Mating) [x]	0.45 in
Length - Post (Mating) [x]	11.43 mm
Length - Stack Height [x]	0.25 in
Length - Stack Height [x]	6.35 mm
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Length - Tail	Length - Tail	Contact Finish - Post (Mating)	Mounting Type	Color	Number of Rows	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. EW-13-12-G-S-435	0.25 Ám	10 Áin	13	0.33 in	8.382 mm	Gold	Through Hole	Black	1	Solder	0.265 in	6.731 mm	1.03 in	26.162 mm	2.54 mm	0.1 in
Samtec Inc. EW-13-12-G-D-500	0.25 Ám	10 Áin	26	0.33 in	8.382 mm	Gold	Through Hole	Black	2	Solder	0.2 in	5.08 mm	1.03 in	26.162 mm	2.54 mm	0.1 in	0.5 in	12.7 mm	0.1 in	2.54 mm
Samtec Inc. EW-13-12-G-D-625	0.25 Ám	10 Áin	26	0.33 in	8.382 mm	Gold	Through Hole	Black	2	Solder	0.075 in	1.905 mm	1.03 in	26.162 mm	2.54 mm	0.1 in			0.1 in	2.54 mm	0.625 in	15.875 mm
Samtec Inc. EW-13-12-G-D-250	0.25 Ám	10 Áin	26	0.33 in	8.382 mm	Gold	Through Hole	Black	2	Solder	0.45 in	11.43 mm	1.03 in	26.162 mm	2.54 mm	0.1 in	0.25 in	6.35 mm	0.1 in	2.54 mm
Samtec Inc. EW-13-12-G-D-480	0.25 Ám	10 Áin	26	0.33 in	8.382 mm	Gold	Through Hole	Black	2	Solder	0.22 in	5.588 mm	1.03 in	26.162 mm	2.54 mm	0.1 in	0.48 in	12.192 mm	0.1 in	2.54 mm
Samtec Inc. EW-13-12-S-D-570	0.76 µm	30 µin	26	0.33 in	8.382 mm	Gold	Through Hole	Black	2	Solder	0.13 in	3.302 mm	1.03 in	26.162 mm	2.54 mm	0.1 in	0.57 in	14.478 mm	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
