103961-2
ActiveTE Connectivity AMP Connectors

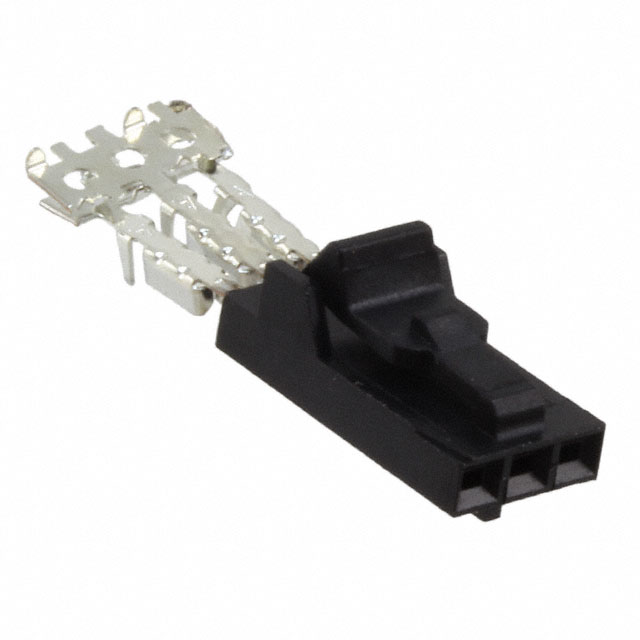

CONN RCPT 3POS IDC 26-30AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103961-2
ActiveTE Connectivity AMP Connectors
CONN RCPT 3POS IDC 26-30AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103961-2 | 103961 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 2 - 10 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1512 | $ 1.17 | |
103961 Series
CONN RCPT 8POS IDC 26-30AWG GOLD
| Part | Number of Rows | Pitch [x] | Pitch [x] | Cable Termination | Features | Wire Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Color | Number of Positions | Contact Type | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103961-7 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 8 | Female Socket | Free Hanging (In-Line) | Latch Lock |
TE Connectivity AMP Connectors 103961-8 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 9 | Female Socket | Free Hanging (In-Line) | Latch Lock |
TE Connectivity AMP Connectors 103961-2 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | Female Socket | Free Hanging (In-Line) | Latch Lock | |
TE Connectivity AMP Connectors 5-103961-5 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 6 | Female Socket | Free Hanging (In-Line) | Latch Lock |
TE Connectivity AMP Connectors 5-103961-8 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 9 | Female Socket | Free Hanging (In-Line) | Latch Lock |
TE Connectivity AMP Connectors 103961-1 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 2 | Female Socket | Free Hanging (In-Line) | Latch Lock |
TE Connectivity AMP Connectors 5-103961-4 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | Female Socket | Free Hanging (In-Line) | Latch Lock | |
TE Connectivity AMP Connectors 5-103961-9 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 10 | Female Socket | Free Hanging (In-Line) | Latch Lock |
TE Connectivity AMP Connectors 103961-4 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | Female Socket | Free Hanging (In-Line) | Latch Lock | |
TE Connectivity AMP Connectors 5-103961-1 | 1 | 2.54 mm | 0.1 in | IDC | Closed End | Discrete or Ribbon Cable | 0.76 Ám | 30 Áin | Receptacle | Gold | 26 AWG | 30 AWG | Black | 2 | Female Socket | Free Hanging (In-Line) | Latch Lock |
Description
General part information
103961 Series
3 Position Rectangular Receptacle Connector IDC Gold 26-30 AWG
