222-415/K194-4045
ActiveWAGO Corporation

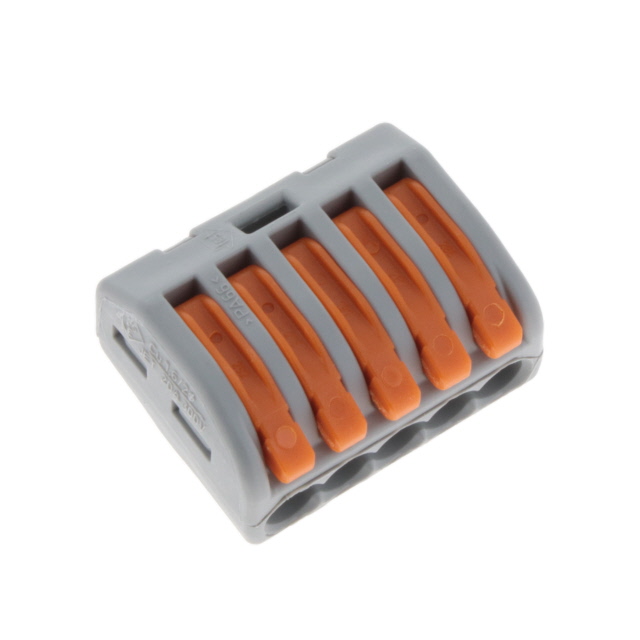

SPLICE LEVER 28-12 AWG 5POS 40PC
Deep-Dive with AI
Search across all available documentation for this part.
222-415/K194-4045
ActiveWAGO Corporation
SPLICE LEVER 28-12 AWG 5POS 40PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 222-415/K194-4045 |
|---|---|
| Color | Orange, Gray |
| Features | Releasable |
| Insulation | Fully Insulated |
| Number of Wire Entries | 5 |
| Terminal Type | Individual Openings, Closed End, Butt Splice |
| Termination | Push In |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 27.75 | |
| 10 | $ 24.30 | |||
| 25 | $ 23.25 | |||
| 50 | $ 22.50 | |||
| 100 | $ 21.75 | |||
| 250 | $ 20.55 | |||
| 500 | $ 19.95 | |||
Description
General part information
222-415/K Series
Terminal Butt Splice, Closed End, Individual Openings Connector Push In 12-28 AWG Gray, Orange
Documents
Technical documentation and resources
No documents available
