6792222342F

Active

DIALIGHT

LED PANEL INDCATOR GREEN 24V

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL INDCATOR GREEN 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.95

General part information

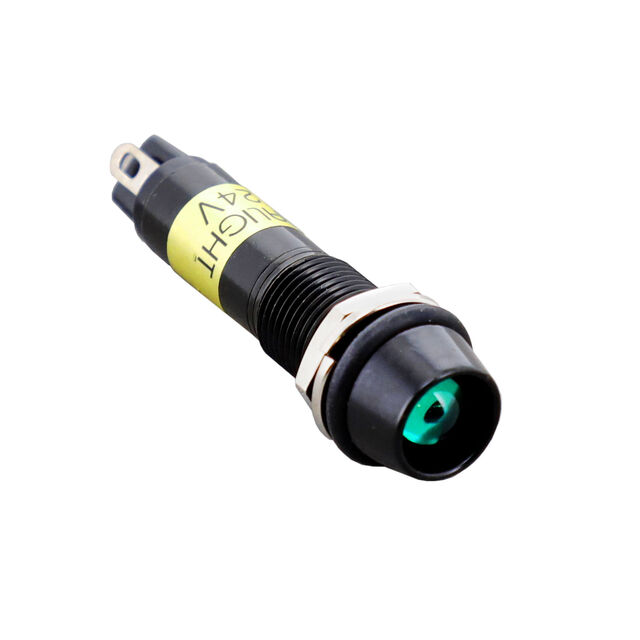

LED Panel Indicator Green 30° 24V 30mA Solder Lug

Technical documentation and resources

No documents available

Specification	6792222342F	6792222 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Millicandela Rating	25000 mcd	5870 - 25000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions [diameter]	0.37 in	0.37 in
Panel Cutout Dimensions [diameter]	9.35 mm	9.35 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	30 °	30 °
Voltage	24 V	6 - 24 V
Wavelength - Peak	525 nm	525 nm

Part	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Current	Ratings	Voltage	Type	Panel Cutout Shape	Ingress Protection	Millicandela Rating	Lamp Color	Termination Style	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Wavelength - Peak	Viewing Angle
DIALIGHT 6792222332F	0.37 in	9.4 mm	30 mA	DC	12 V	LED	Round	IP66, NEMA 4X	5870 mcd	Green	Solder Lug
DIALIGHT 6792222322F			30 mA	DC	6 V	LED	Round	IP66, NEMA 4X	25000 mcd	Green	Solder Lug	0.37 in	9.35 mm	525 nm	30 °
DIALIGHT 6792222342F			30 mA	DC	24 V	LED	Round	IP66, NEMA 4X	25000 mcd	Green	Solder Lug	0.37 in	9.35 mm	525 nm	30 °
