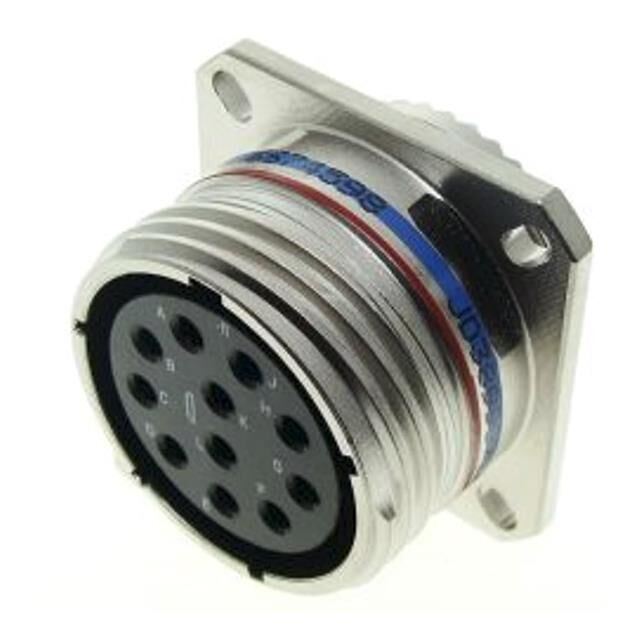

D38999/20SD5PNL
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20SD5PNL
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/20SD5PNL | D38999/20SD Series |
|---|---|---|
| Applications | - | Aerospace, Aviation, Military |
| Color | - | Silver |
| Connector Type | Receptacle Housing | Receptacle Housing, Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Copper Alloy |
| Contact Type | Crimp | Crimp |
| Grade | - | Military |
| Housing Color | Silver | Silver |
| Includes | 1 pc - 1 Insert Shell | 1 pc - 1 Insert Shell |
| Ingress Protection | Waterproof | Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 15 - 19 |
| Operating Temperature [Max] | 200 °C | 125 - 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | - | MIL-DTL-38999 Series III |
| Shell Finish | - | Nickel |
| Shell Material | - | Stainless Steel |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 15 |
| Shell Size - Insert | - | 15 |
| Shell Size - Insert | - | 15 - 18 |
| Shell Size, MIL | D | D |
| Shielding | - | Shielded |
| Termination | - | Crimp |
| Type | For Female Sockets | For Female Sockets |
D38999/20SD Series
D38999 SER III RECEPTACLE
| Part | Note | Primary Material | Contact Type | Ingress Protection | Mounting Feature | Housing Color | Shell Size, MIL | Type | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Connector Type | Orientation | Insert Material | Qualification | Number of Positions | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Grade | Contact Finish - Mating | Shielding | Termination | Contact Material | Applications | Shell Finish | Color | Shell Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair D38999/20SD5PNL | Contacts Not Included | Metal | Crimp | Waterproof | Flange | Silver | D | For Female Sockets | 1 pc - 1 Insert Shell | -65 ░C | 200 °C | UL94 V-0 | Receptacle Housing | N | Thermoplastic | |||||||||||||||
Corsair D38999/20SD19HN | Metal | Waterproof | Flange | D | -65 ░C | 125 °C | UL94 V-0 | Receptacle, Female Sockets | N | Thermoplastic | MIL-DTL-38999 Series III | 19 | 19 | 15 | Military | Gold | Shielded | Crimp | Copper Alloy | Aerospace, Aviation, Military | ||||||||||
Corsair D38999/20SD19PN | Metal | Waterproof | Flange | D | -65 ░C | 125 °C | UL94 V-0 | Male Pins, Receptacle | N | Thermoplastic | MIL-DTL-38999 Series III | 19 | 19 | 15 | Military | Gold | Shielded | Crimp | Copper Alloy | Aerospace, Aviation, Military | Nickel | Silver | Stainless Steel | |||||||
Corsair D38999/20SD15SN | Metal | Waterproof | Flange | D | -65 ░C | 125 °C | UL94 V-0 | Receptacle, Female Sockets | N | Thermoplastic | MIL-DTL-38999 Series III | 15 | Military | Gold | Shielded | Crimp | Copper Alloy | Aerospace, Aviation, Military | Nickel | Silver | Stainless Steel | 15 | 15 | |||||||
Corsair D38999/20SD18HN | Metal | Waterproof | Flange | D | -65 ░C | 125 °C | UL94 V-0 | Receptacle, Female Sockets | N | Thermoplastic | MIL-DTL-38999 Series III | 18 | Military | Gold | Shielded | Crimp | Copper Alloy | Aerospace, Aviation, Military | 15 | 18 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 79.86 | |
| 10 | $ 77.47 | |||
| 25 | $ 75.23 | |||
| 50 | $ 72.09 | |||
| 100 | $ 71.10 | |||
| 250 | $ 69.21 | |||
| 500 | $ 68.30 | |||
| 1000 | $ 67.41 | |||
Description
General part information
D38999/20SD Series
5 Position Circular Connector Receptacle Housing Panel Mount
