SSA-104-W-G-RA

Active

Samtec Inc.

CONN RCPT .100" 4POS GOLD WW R/A

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT .100" 4POS GOLD WW R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-104-W-G-RA

Connector Type	Breakaway, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	14.61 mm
Contact Length - Post [x]	0.575 in
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Wire Wrap
Voltage Rating	1000 VDC

Part	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Type	Connector Type	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions Loaded	Contact Material	Insulation Material	Insulation Color	Voltage Rating	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SSA-104-W-T	Through Hole	0.656 in	16.66 mm	Female Socket	Breakaway Receptacle	1	UL94 V-0	0.1 in	2.54 mm	105 ░C	-55 °C	Wire Wrap	All	Phosphor Bronze	Polyester Polyethylene Terephthalate (PET)	Black	1000 VDC	Push-Pull	4	5.85 mm	0.23 in
Samtec Inc. SSA-104-S-G	Through Hole	0.151 in	3.84 mm	Female Socket	Breakaway Receptacle	1	UL94 V-0	0.1 in	2.54 mm	125 °C	-55 °C	Solder	All	Phosphor Bronze	Polyester Polyethylene Terephthalate (PET)	Black	1000 VDC	Push-Pull	4	5.85 mm	0.23 in	Gold	10 çin	0.25 çm
Samtec Inc. SSA-104-W-G-RA	Through Hole Right Angle			Female Socket	Breakaway Receptacle	1	UL94 V-0	0.1 in	2.54 mm	125 °C	-55 °C	Wire Wrap	All	Phosphor Bronze	Polyester Polyethylene Terephthalate (PET)	Black	1000 VDC	Push-Pull	4	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	14.61 mm	0.575 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.39

General part information

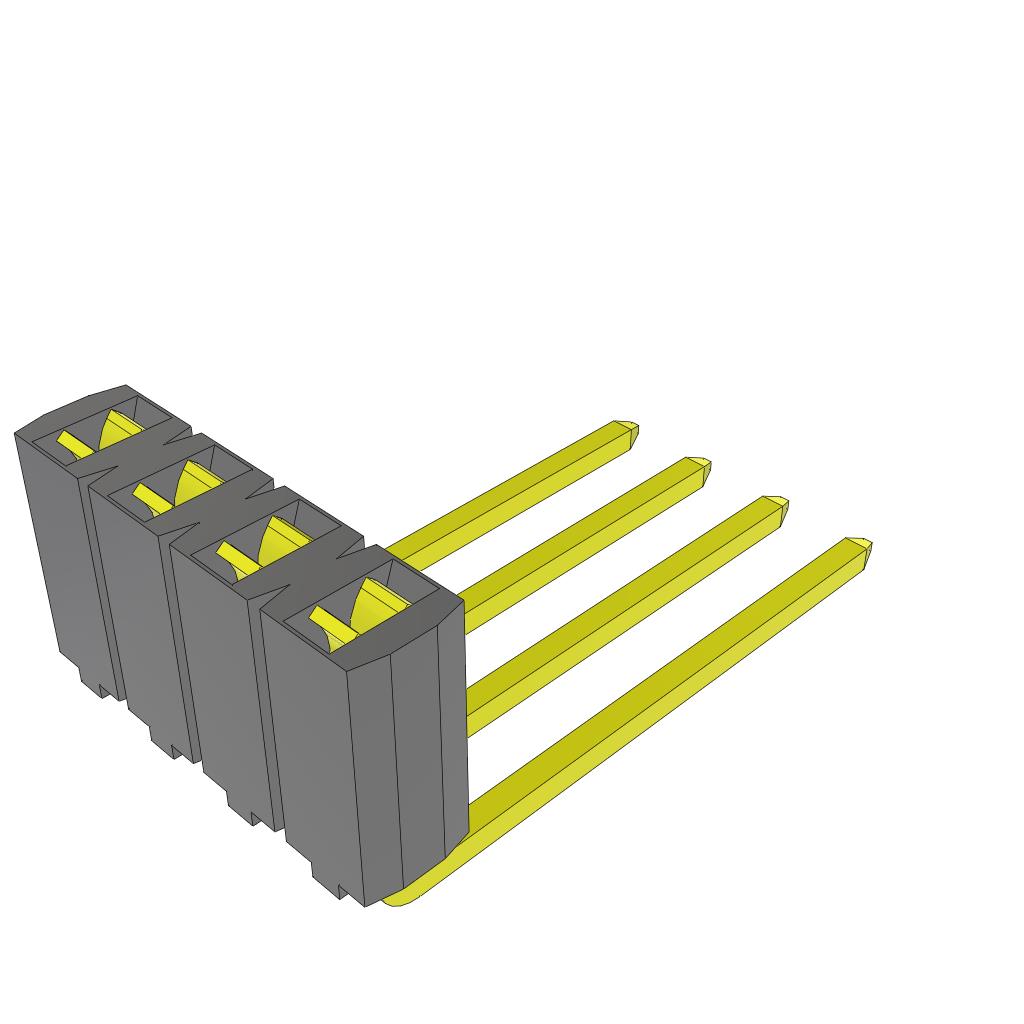

4 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
