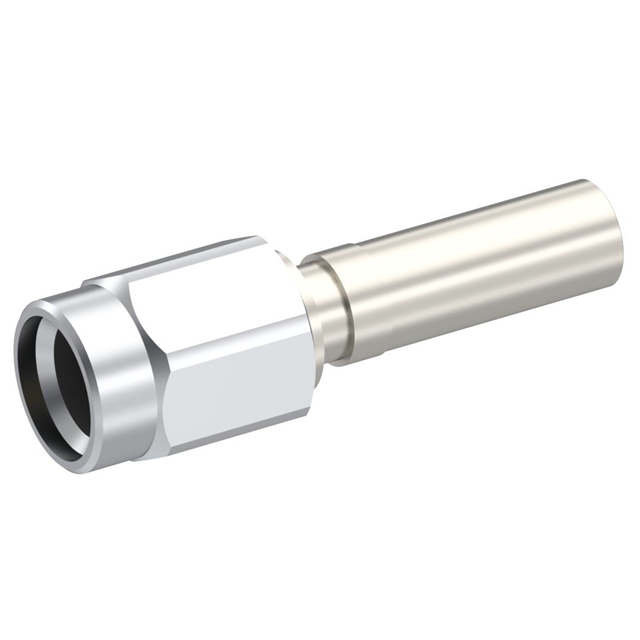

R121072000

Active

Radiall USA, Inc.

SSMA / STRAIGHT PLUG SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / STRAIGHT PLUG SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R121072000

Body Finish	Nickel
Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Body Material	Voltage Rating	Mating Cycles	Frequency - Max [Max]	Number of Ports	Shield Termination	Center Contact Material	Body Finish	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Connector Type	Center Contact Plating	Dielectric Material	Connector Style	Impedance	Housing Color	Mounting Type
Radiall USA, Inc. R121072000	Stainless Steel	250 VDC	500	18 GHz	1	Crimp	Brass	Nickel	316 RG-174	155 °C	-55 °C	Crimp	Male Pin Plug	Gold	Polytetrafluoroethylene (PTFE)	SSMA	50 Ohms	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 89.90

General part information

SSMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
