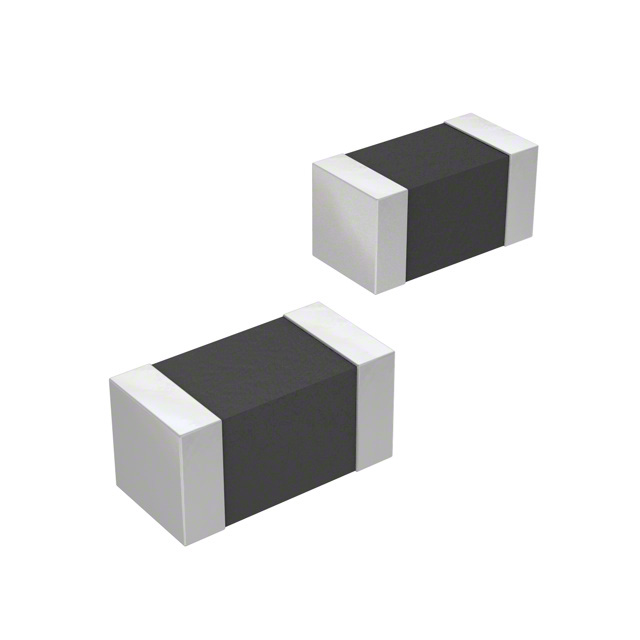

CM160808-56NJL

Obsolete

Bourns Inc.

FIXED IND 56NH 250MA 1.2 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CM160808-56NJL

Obsolete

Bourns Inc.

FIXED IND 56NH 250MA 1.2 OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CM160808-56NJL

Current Rating (Amps)	0.25 A
DC Resistance (DCR) [Max]	1.2 Ohm
Frequency - Self Resonant	1.8 GHz
Height - Seated (Max) [Max] [z]	0.94 mm
Height - Seated (Max) [Max] [z]	0.037 "
Inductance	56 nH
Inductance Frequency - Test	100 MHz
Material - Core	Alumina
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	12, 100 MHz
Shielding	Unshielded
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Tolerance	5 %
Type	Wirewound, Drum Core

CM160808 Series

Part	Material - Core	Inductance Range [Min]	Inductance Range [Max]	Quantity	Mounting Type	Packages Included	Kit Type	Style	DC Resistance (DCR) [Max]	Tolerance	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Supplier Device Package	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Q @ Freq	Inductance	Type	Frequency - Self Resonant	Package / Case	DC Resistance (DCR)
Bourns Inc. CM160808-LAB1	Alumina	1.5 nH	100 nH	720 Pieces	Surface Mount	0603 (1608 Metric)	Fixed	Wirewound
Bourns Inc. CM160808-82NJL	Alumina				Surface Mount				1.5 Ohm	5 %	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	0.25 A	12 100 MHz	82 nH	Drum Core Wirewound	1.5 GHz	0603 (1608 Metric)
Bourns Inc. CM160808-1N8DL	Alumina				Surface Mount				80 mOhm	0.3 nH	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	0.5 A	8	1.8 nH	Drum Core Wirewound	6 GHz	0603 (1608 Metric)
Bourns Inc. CM160808-4N7JL	Alumina				Surface Mount				170 mOhm	5 %	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	450 mA	9 100 MHz	4.7 nH	Drum Core Wirewound	4.8 GHz	0603 (1608 Metric)
Bourns Inc. CM160808-6N8JL	Alumina				Surface Mount					5 %	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	430 mA	9 100 MHz	6.8 nH	Drum Core Wirewound	3.55 GHz	0603 (1608 Metric)	200 mOhm
Bourns Inc. CM160808-2N2DL	Alumina				Surface Mount				90 mOhm	0.3 nH	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	0.5 A	8		Drum Core Wirewound	6 GHz	0603 (1608 Metric)
Bourns Inc. CM160808-33NJL	Alumina				Surface Mount					5 %	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	300 mA	10 100 MHz	33 nH	Drum Core Wirewound	1.8 GHz	0603 (1608 Metric)
Bourns Inc. CM160808-56NJL	Alumina				Surface Mount				1.2 Ohm	5 %	100 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 "	1608 Metric	0603	Unshielded	100 °C	-40 °C	0.25 A	12 100 MHz	56 nH	Drum Core Wirewound	1.8 GHz	0603 (1608 Metric)
