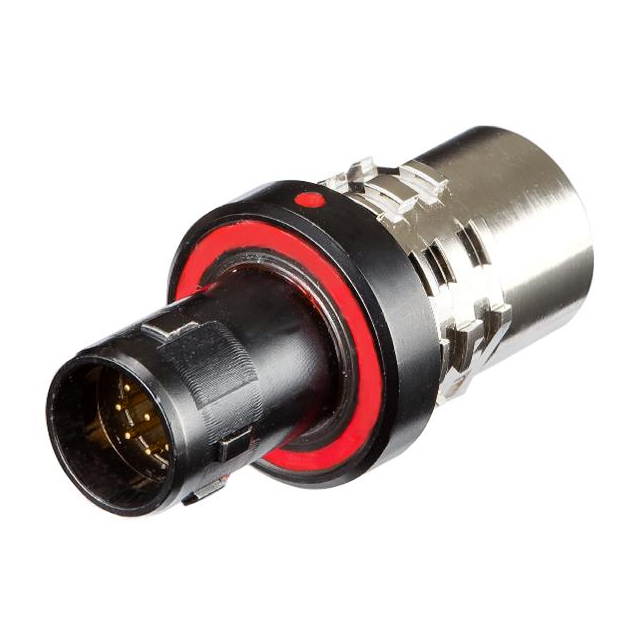

FDYB-09A1MS-RDK-000
ActiveAmphenol LTW
FLOS Y SERIES FIELD INSTALLABLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FDYB-09A1MS-RDK-000
ActiveAmphenol LTW
FLOS Y SERIES FIELD INSTALLABLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FDYB-09A1MS-RDK-000 |
|---|---|
| Backshell Material, Plating | Metal |
| Cable Opening [diameter] | 5.5 mm |
| Cable Opening [diameter] | 0.217 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IPX8 - Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | R |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | B-9 |
| Shielding | Unshielded |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 38.60 | |
Description
General part information
FDYB-09A1MS Series
9 Position Circular Connector Plug, Male Pins Solder Cup
