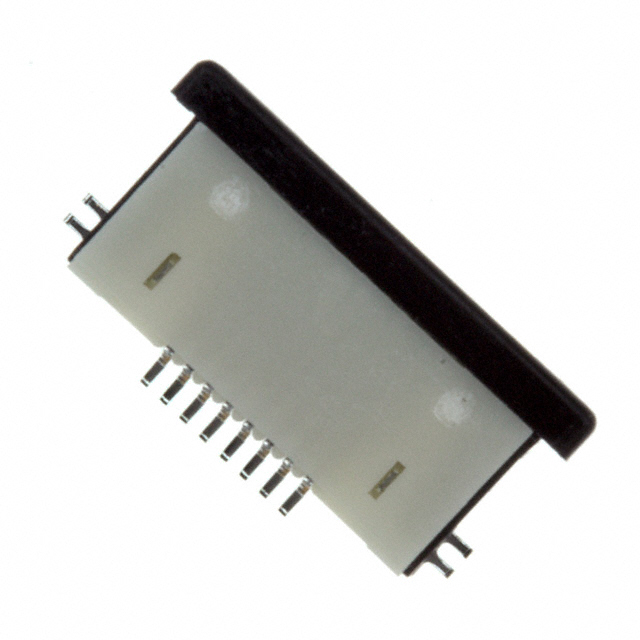

08FLZ-RSM2-TB

Active

JST Sales America Inc.

CONN FFC BOTTOM 8POS 0.5MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC BOTTOM 8POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	08FLZ-RSM2-TB

Actuator Color	Black
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Natural
Housing Material	Polyamide (PA6T), Nylon 6T
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Locking Feature	Actuator Material	Features	Contact Material	Current Rating (Amps)	Pitch [x]	Pitch [x]	Actuator Color	Material Flammability Rating	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Mounting Type	Number of Positions	Termination	Contact Finish	Flat Flex Type	Housing Color	Voltage Rating	FFC, FCB Thickness	Cable End Type	Height Above Board	Height Above Board
JST Sales America Inc. 08FLZ-RSM2-TB	Slide Lock	Polyamide (PA6T) Nylon 6T	Solder Retention Zero Insertion Force (ZIF)	Phosphor Bronze	0.5 A	0.5 mm	0.02 in	Black	UL94 V-0	Contacts Bottom	-25 °C	85 °C	Polyamide (PA6T) Nylon 6T	Surface Mount Right Angle	8	Solder	Tin	FFC FPC	Natural	50 V	0.3 mm	Tapered	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.92
	Digi-Reel®	1	$ 0.92
	Tape & Reel (TR)	2800	$ 0.47

General part information

8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
