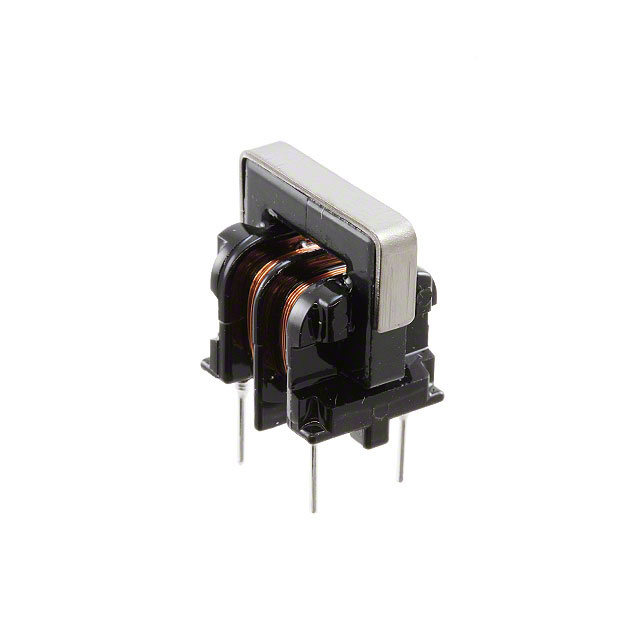

SU9V-R07017

Active

KEMET

CMC 1.7MH 700MA 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 1.7MH 700MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Inductance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Filter Type	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Lines
KEMET SU9V-R05034	4 Lead	Vertical	17 mm	0.669 in	Through Hole	3.4 mH	125 °C	-25 °C	250 V	Power Line	1 Ohm	500 mA	0.669 "	11 mm	17 mm	0.433 in	2
KEMET SU9V-R01180	4 Lead	Vertical	17 mm	0.669 in	Through Hole	1 kHz 18 mH	125 °C	-25 °C	250 V	Power Line	8 Ohm	100 mA	0.669 "	11 mm	17 mm	0.433 in	2
KEMET SU9V-03050	4 Lead	Vertical	17 mm	0.669 in	Through Hole	5 mH	125 °C	-25 °C	250 V	Power Line	3 Ohm	300 mA	0.669 "	11 mm	17 mm	0.433 in	2
KEMET SU9V-07010	4 Lead	Vertical	17 mm	0.669 in	Through Hole	1 mH	125 °C	-25 °C	250 V	Power Line	600 mOhm	700 mA	0.669 "	11 mm	17 mm	0.433 in	2
KEMET SU9V-R07017	4 Lead	Vertical	17 mm	0.669 in	Through Hole	1.7 mH	125 °C	-25 °C	250 V	Power Line	600 mOhm	700 mA	0.669 "	11 mm	17 mm	0.433 in	2
KEMET SU9V-R10008	4 Lead	Vertical	17 mm	0.669 in	Through Hole	800 µH	125 °C	-25 °C	250 V	Power Line	300 mOhm	1 A	0.669 "	11 mm	17 mm	0.433 in	2
