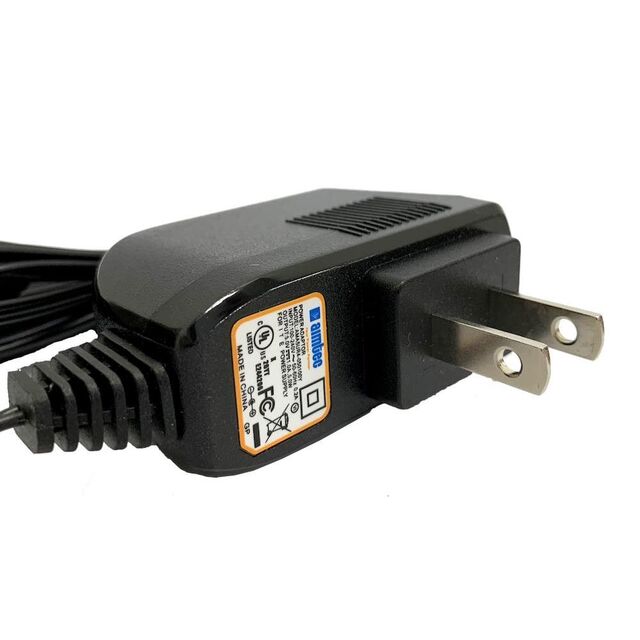

AMA5UR1-033160Y

Active

aimtec

AC/DC WALL MNT ADAPT 3.3V 5.28W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMA5UR1-033160Y

Active

aimtec

AC/DC WALL MNT ADAPT 3.3V 5.28W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMA5UR1-033160Y

Applications	ITE (Commercial)
Approval Agency	FCC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.6 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	3.5 mm, 1.35 mm
Output Connector [z]	9.5 mm
Polarization	Positive Center
Power (Watts)	5.28 W
Region Utilized	North America
Size / Dimension [x]	64 mm
Size / Dimension [x]	2.52 in
Size / Dimension [y]	26.2 mm
Size / Dimension [y]	1.03 in
Size / Dimension [z]	38.7 mm
Size / Dimension [z]	1.52 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	3.3 V
Weight	40 g
Weight	0.088 lb

AMA5 Series

Part	Polarization	Current - Output (Max) [Max]	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Input Connector	Efficiency	Standard Number	Output Connector [diameter]	Output Connector [x]	Output Connector	Power (Watts)	Region Utilized	No Load Power Consumption	Input Type	Form	Approval Agency	Applications	Voltage - Output	Weight	Weight	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [z]
aimtec AMA5UR4-050100Y	Positive Center	1 A	60.2 in	1.5 m	2.52 in	64 mm	61 mm	26.2 mm	2.4 in	1.03 in	NEMA 1-15P	Level VI	60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	5 W	North America	100 mW	Fixed Blade	Wall Mount (Class II)	CE	ITE (Commercial)	5 V	40 g	0.088 lb	40 °C	90 VAC	264 VAC
aimtec AMA5UU3-050100Y		1 A			2.52 in	64 mm	61 mm	26.2 mm	2.4 in	1.03 in	NEMA 1-15P	Level VI	60950-1				5 W	North America	100 mW	Fixed Blade	Wall Mount (Class II)	CE IEC UL	ITE (Commercial)	5 V	40 g	0.088 lb	40 °C	90 VAC	264 VAC
aimtec AMA5ER4-050100Y	Positive Center	1 A	60.2 in	1.5 m	2.52 in	64 mm	61 mm	26.2 mm	2.4 in	1.03 in	CEE 7/16	Level VI	60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	5 W	Europe	100 mW	Fixed Blade	Wall Mount (Class II)	CE	ITE (Commercial)	5 V	40 g	0.088 lb	40 °C	90 VAC	264 VAC
aimtec AMA5UR4-120050Y	Positive Center	500 mA	60.2 in	1.5 m	2.52 in	64 mm	61 mm	26.2 mm	2.4 in	1.03 in	NEMA 1-15P	Level VI	60950-1	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	6 W	North America	100 mW	Fixed Blade	Wall Mount (Class II)	CE	ITE (Commercial)	12 V	40 g	0.088 lb	40 °C	90 VAC	264 VAC
aimtec AMA5UR1-033160Y	Positive Center	1.6 A	59 in	1.5 m	2.52 in	64 mm	38.7 mm	26.2 mm	1.52 in	1.03 in	NEMA 1-15P	Level VI	60950-1	1.35 mm 3.5 mm		Barrel Plug	5.28 W	North America	100 mW	Fixed Blade	Wall Mount (Class II)	FCC	ITE (Commercial)	3.3 V	40 g	0.088 lb	40 °C	90 VAC	264 VAC	9.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.17
		5	$ 8.64
		10	$ 8.42
		25	$ 8.14
		50	$ 7.93
		100	$ 7.73
		250	$ 7.47
		500	$ 7.29

Description

General part information

AMA5 Series

3.3V 5.28 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
