SGA60E24-P1J

Obsolete

MEAN WELL USA Inc.

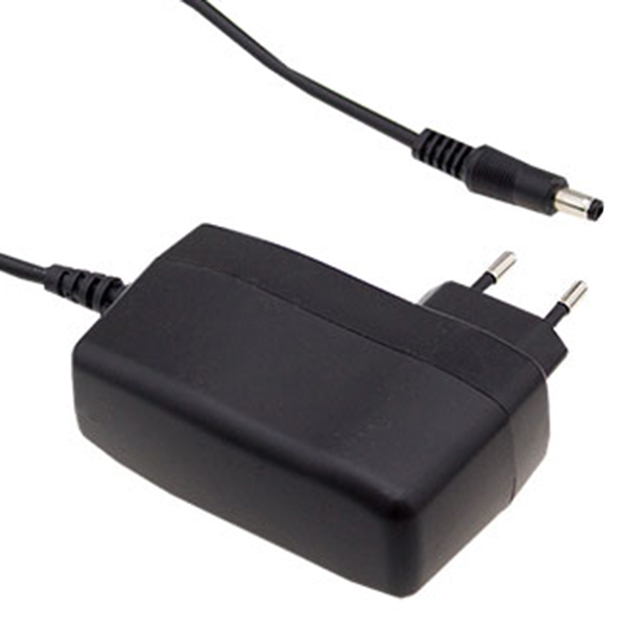

AC/DC WALL MOUNT ADAPTER 24V 60W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	SGA60E24-P1J

Applications	ITE (Commercial)
Approval Agency	CE, GS, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	Europe
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.68 "
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	2.03 "
Size / Dimension [z]	51.5 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Applications	Efficiency	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector	Output Connector [diameter]	Output Connector [z]	Form	No Load Power Consumption [Max]	Voltage - Output	Input Type	Input Connector	Power (Watts)	Polarization	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length
MEAN WELL USA Inc. SGA60E24-P1J	ITE (Commercial)	Level VI	CB CE GS	2.5 A	50 °C	-20 C	Barrel Plug	2.1 mm 5.5 mm	11 mm	Wall Mount (Class II)	150 mW	24 V	Fixed Blade	CEE 7/16	60 W	Positive Center	93.5 mm	35 mm	3.68 "	2.03 "	51.5 mm	1.38 "	Europe	90 VAC	264 VAC	1.5 m	59 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.79

General part information

24V 60 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
