MC13892VLR2

Obsolete

Freescale Semiconductor

POWER SUPPLY CIRCUIT, ADJ

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor

POWER SUPPLY CIRCUIT, ADJ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MC13892VLR2	MC13892 Series

Applications	Battery Management, Power Supply, Handheld/Mobile Devices, Display (LED Drivers)	Battery Management, Power Supply, Handheld/Mobile Devices, Display (LED Drivers)
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	186-LFBGA	186-LFBGA, 139-TFBGA

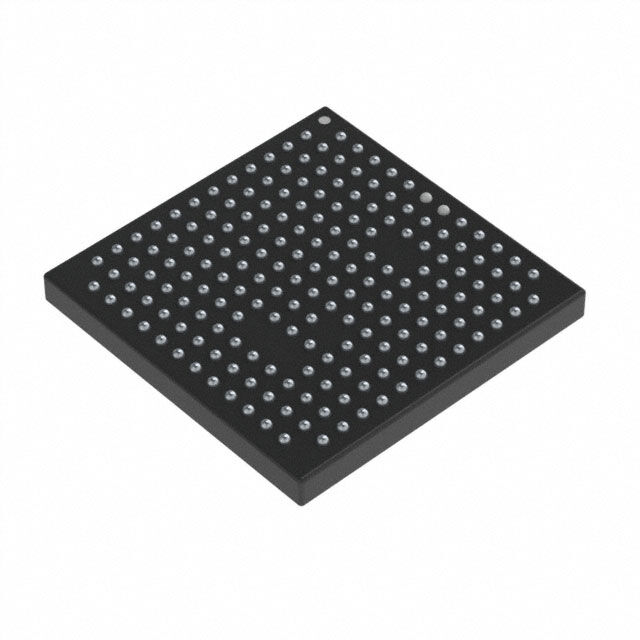

Supplier Device Package	186-PBGA (12x12)	186-PBGA (12x12), 139-PBGA (7x7)

POWER SUPPLY CIRCUIT, ADJ

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Supplier Device Package
Freescale Semiconductor MC13892VLR2	Surface Mount	85 °C	-40 °C	Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply	186-LFBGA	186-PBGA (12x12)
Freescale Semiconductor MC13892VK	Surface Mount	85 °C	-40 °C	Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply	139-TFBGA	139-PBGA (7x7)
Freescale Semiconductor MC13892BJVKR2	Surface Mount	85 °C	-40 °C	Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply	139-TFBGA	139-PBGA (7x7)
Freescale Semiconductor MC13892JVK	Surface Mount	85 °C	-40 °C	Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply	139-TFBGA	139-PBGA (7x7)
Freescale Semiconductor MC13892BJVK	Surface Mount	85 °C	-40 °C	Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply	139-TFBGA	139-PBGA (7x7)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	49	$ 6.14

General part information

Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply PMIC 186-PBGA (12x12)

Technical documentation and resources

No documents available
