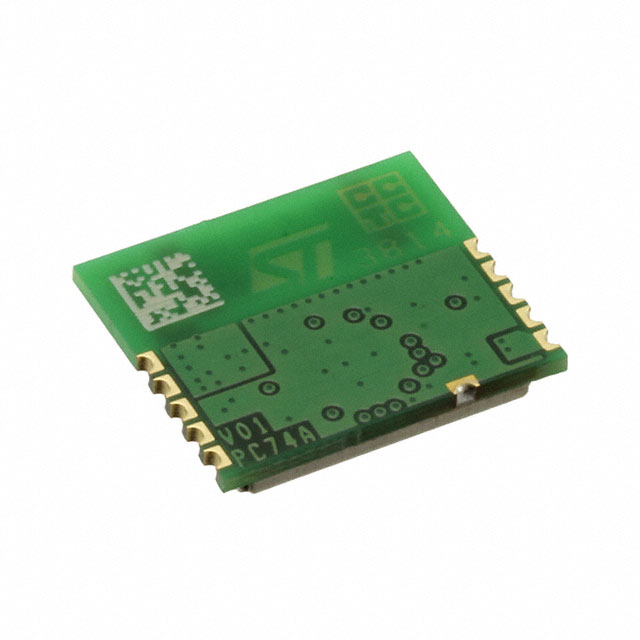

SPSGRF-868

Obsolete

STMicroelectronics

RF TXRX MOD ISM<1GHZ CHIP SMD

Search across all available documentation for this part.

Obsolete

STMicroelectronics

RF TXRX MOD ISM<1GHZ CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Transmitting	Utilized IC / Part	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Package / Case	Modulation	Mounting Type	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Current - Receiving	Sensitivity	Antenna Type	RF Family/Standard	Current - Transmitting [Min]	Current - Transmitting [Max]
STMicroelectronics SPSGRFC-868	22 mA	SPIRIT1	500 kbps	3.6 V	1.8 V	SPI	Module	2FSK ASK GFSK GMSK MSK OOK	Surface Mount	11.6 dBm	85 °C	-40 °C	868 MHz	10 mA	-118 dBm	Antenna Not Included U.FL
STMicroelectronics SPSGRFC-915	22 mA	SPIRIT1	500 kbps	3.6 V	1.8 V	SPI	Module	2FSK ASK GFSK MSK OOK	Surface Mount	11.6 dBm	85 °C	-40 °C	915 MHz	10 mA	-118 dBm	Antenna Not Included U.FL	General ISM < 1GHz
STMicroelectronics SPSGRF-915		SPIRIT1	500 kbps	3.6 V	1.8 V	SPI	Module	2-FSK ASK GFSK GMSK MSK OOK	Surface Mount	11.6 dBm	85 °C	-40 °C	915 MHz	10 mA	-118 dBm	Integrated Chip	General ISM < 1GHz	9 mA	22 mA
STMicroelectronics SPSGRF-868		SPIRIT1	500 kbps	3.6 V	1.8 V	SPI	Module	2-FSK ASK GFSK GMSK MSK OOK	Surface Mount	11.6 dBm	85 °C	-40 °C	868 MHz	10 mA	-118 dBm	Integrated Chip	General ISM < 1GHz	9 mA	22 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 868MHz Integrated, Chip Surface Mount

Technical documentation and resources
