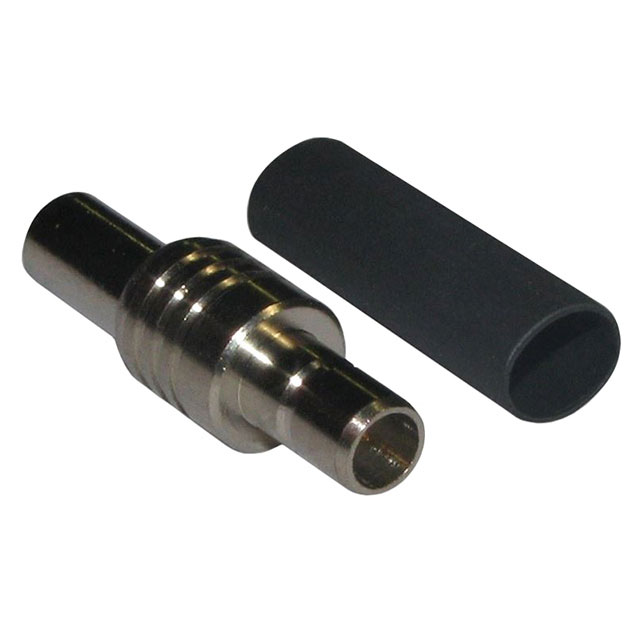

Specification	142181-75

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Mini
Connector Type	Jack, Male Pin
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Silver
Impedance	75 Ohm
Includes	Connector, Ferrule, Heat Shrink, Contact
Includes Total Count	4 pcs
Insertion Loss	0.3 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

142181 Series

Part	Mating Cycles	Body Finish	Body Material	Center Contact Plating	Dielectric Material	Insertion Loss	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Impedance	Mounting Type	Contact Termination	Center Contact Material	Fastening Type	Cable Group	Connector Style	Number of Ports	Shield Termination	Connector Type	Housing Color
McGill Microwave Systems 142181-75	500 cycles	Nickel	Brass	Gold	Polytetrafluoroethylene (PTFE)	0.3 dB	4 pcs	Connector Contact Ferrule Heat Shrink	-65 °C	165 °C	75 Ohm	Free Hanging (In-Line)	Crimp	Brass	Snap-On	RG-179	Mini SMB	1	Crimp	Jack Male Pin	Silver
