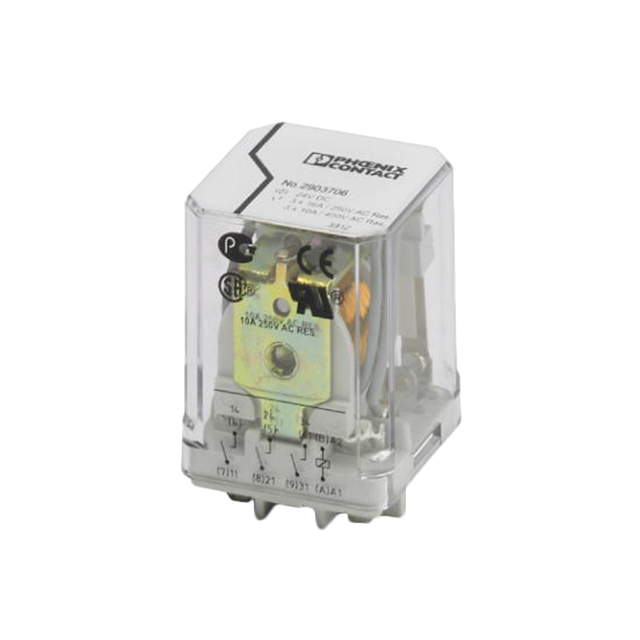

POWER RELAY 24VDC 16A 3PST-NO(38.6X45.5X36.1)MM PLUG-IN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2903706

Active

Phoenix Contact

POWER RELAY 24VDC 16A 3PST-NO(38.6X45.5X36.1)MM PLUG-IN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2903706	29037 Series

Approval Agency	cULus, CSA, EAC, UL	EAC, UR, CSA, cURus, cULus, UL
Coil Current	70 mA	12 - 116 mA
Coil Resistance	343 Ohms	5.22 - 429 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 230 VAC
Contact Form	3PST-NO (3 Form A)	DPDT (2 Form C), 3PST-NO (3 Form A), 3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	16 A	16 A
Load - Max Switching	4000 W, 7040 VA	4000 - 7040 W
Mounting Type	Socketable	Socketable
Operate Time	20 ms	20 - 25 ms
Operating Temperature [Max]	70 °C	55 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	15 - 20 ms
Termination Style	Plug In	Plug In

29037 Series

RELAY GEN PURPOSE DPDT 16A 120V

Part	Contact Form	Termination Style	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Contact Rating (Current)	Release Time	Contact Material	Load - Max Switching	Coil Current	Relay Type	Mounting Type	Coil Resistance	Coil Type	Coil Voltage
Phoenix Contact 2903700	DPDT (2 Form C)	Plug In	CSA, cURus, EAC, UR	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	23 mA	General Purpose	Socketable	5.22 kOhms	Non Latching	120 VAC
Phoenix Contact 2903706	3PST-NO (3 Form A)	Plug In	CSA, cULus, EAC, UL	-40 °C	70 °C	20 ms	16 A	15 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	70 mA	General Purpose	Socketable	343 Ohms	Non Latching	24 VDC
Phoenix Contact 2903709	3PST-NO (3 Form A)	Plug In	CSA, cULus, EAC, UL	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	12 mA	General Purpose	Socketable	19.17 kOhms	Non Latching	230 VAC
Phoenix Contact 2903704	3PDT (3 Form C)	Plug In	CSA, cULus, EAC, UL	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	23 mA	General Purpose	Socketable	5.22 kOhms	Non Latching	120 VAC
Phoenix Contact 2903701	DPDT (2 Form C)	Plug In	CSA, cURus, EAC, UR	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	12 mA	General Purpose	Socketable	19.17 kOhms	Non Latching	230 VAC
Phoenix Contact 2903707	3PST-NO (3 Form A)	Plug In	CSA, cULus, EAC, UL	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	116 mA	General Purpose	Socketable	207 Ohms	Non Latching	24 VAC
Phoenix Contact 2903708	3PST-NO (3 Form A)	Plug In	CSA, cULus, EAC, UL	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	23 mA	General Purpose	Socketable	5.22 kOhms	Non Latching	120 VAC
Phoenix Contact 2903703	3PDT (3 Form C)	Plug In	CSA, cULus, EAC, UL	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	116 mA	General Purpose	Socketable	207 Ohms	Non Latching	24 VAC
Phoenix Contact 2903705	3PDT (3 Form C)	Plug In	CSA, cULus, EAC, UL	-40 °C	55 °C	25 ms	16 A	20 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	12 mA	General Purpose	Socketable	19.17 kOhms	Non Latching	230 VAC
Phoenix Contact 2903702	3PDT (3 Form C)	Plug In	CSA, cULus, EAC, UL	-40 °C	70 °C	20 ms	16 A	15 ms	Silver Nickel (AgNi)	4000 W, 7040 VA	56 mA	General Purpose	Socketable	429 Ohms	Non Latching	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 14.23
		10	$ 13.09
		50	$ 12.09
		100	$ 11.53
		250	$ 11.46

Description

General part information

29037 Series

General Purpose Relay 3PST-NO (3 Form A) 24VDC Coil Socketable
