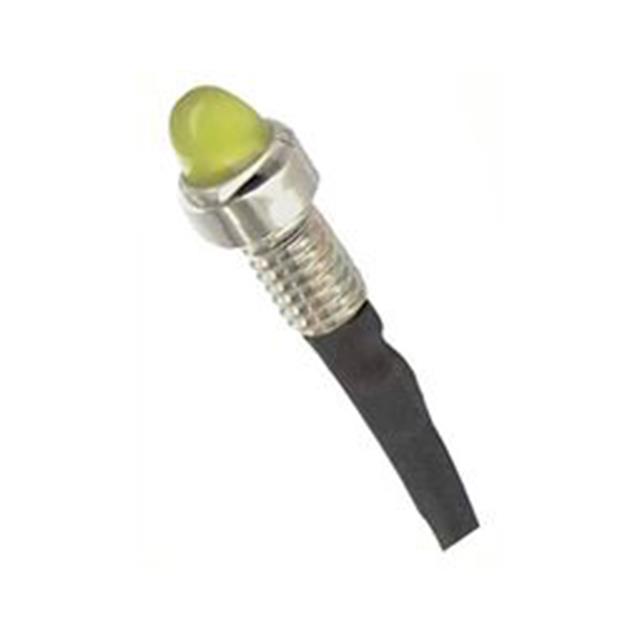

L58D-Y24-W
Visual Communications Company - VCC
LED PANEL INDICATOR YLW 24V
Deep-Dive with AI
Search across all available documentation for this part.
L58D-Y24-W
Visual Communications Company - VCC
LED PANEL INDICATOR YLW 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L58D-Y24-W |
|---|---|
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size [diameter] | 7.11 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 20 mcd |
| Panel Cutout Dimensions [custom] | 4.83 mm |
| Panel Cutout Dimensions [custom] | 0.19 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.80 | |
| 10 | $ 10.41 | |||
| 100 | $ 8.74 | |||
| 500 | $ 8.03 | |||
| 1000 | $ 7.58 | |||
Description
General part information
L58D-Y24 Series
LED Panel Indicator Yellow Diffused 60° 24V 20mA Wire Leads - 6" (152.40mm)
Documents
Technical documentation and resources
No documents available
