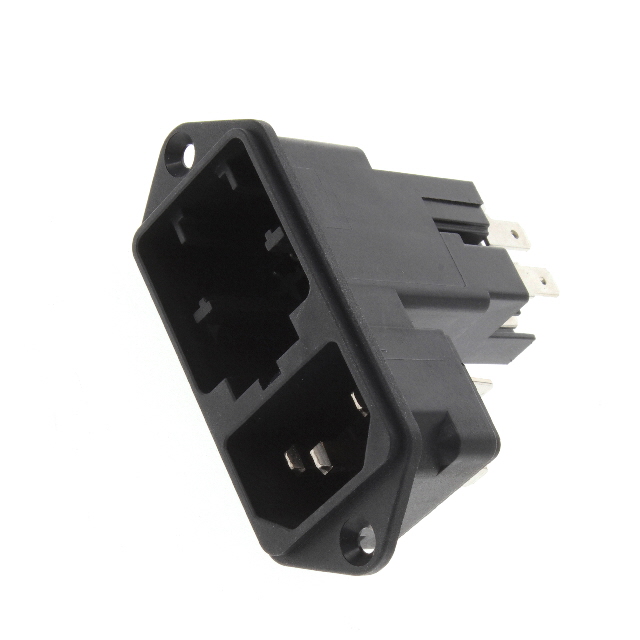

KE15.1100.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KE15.1100.151	KE15.1100 Series

Accomodates a Fuse	True	True
Approval Agency	cURus, ENEC	cURus, ENEC, UL, ENEC, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Snap-In
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm	52.5 mm
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Features	Fuse Holder, Drawer	Termination	Termination	Approval Agency	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Connector Type	Filter Type	Ingress Protection	Mounting Type	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. KE15.1100.151	UL94 V-0	Voltage Selector	Drawer Sold Separate	0.189 ", 4.8 mm	Quick Connect	cURus, ENEC		27.5 mm	52.5 mm	IEC 320-C14	Receptacle, Male Blades - Module	Unfiltered - Commercial	IP40	Flange, Panel Mount	250 VAC	10 A
SCHURTER Inc. KE15.1100.105	UL94 V-0	Voltage Selector	Drawer Sold Separate	0.189 ", 4.8 mm	Quick Connect	CSA, ENEC, UL		27.5 mm	52.5 mm	IEC 320-C14	Receptacle, Male Blades - Module	Unfiltered - Commercial	IP40	Panel Mount, Snap-In	250 VAC	10 A	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
