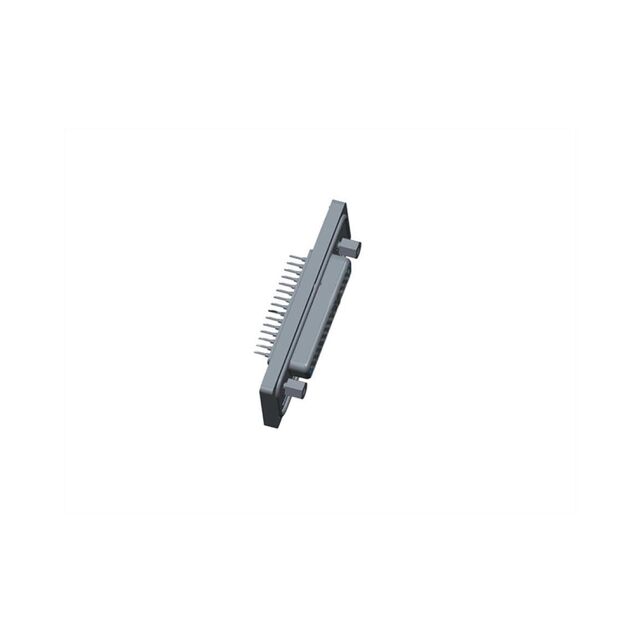

HDB-44PFFP-SL8001

Active

Amphenol LTW

CONN D-SUB HD RCPT 44POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB HD RCPT 44POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-44PFFP-SL8001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Through Hole, Panel Mount
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

Part	Ingress Protection	Number of Rows	Connector Style	Shell Material, Finish	Current Rating (Amps)	Mounting Type	Color	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions	Contact Type	Contact Material	Flange Feature	Contact Finish	Dielectric Material	Termination	Connector Type
Amphenol LTW HDB-44PFFP-SL8001	IP68 - Dust Tight Waterproof	3	D-Sub High Density	Nickel Plated Steel	2 A	Panel Mount Through Hole	Black	3	B DB	-40 °C	105 ░C	Shielded	44	Signal	Copper Alloy	Female Screwlock (4-40) Mating Side	Gold	Polybutylene Terephthalate (PBT)	Solder	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 15.94

General part information

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
