2902955
ActivePhoenix Contact

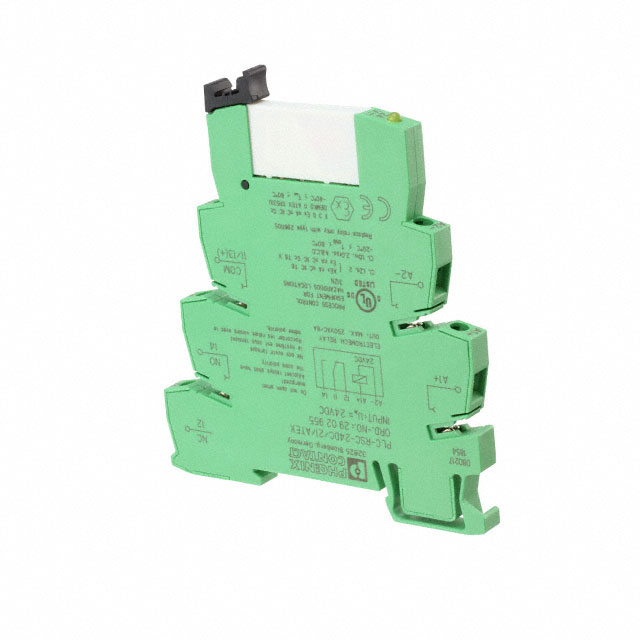

RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
Search across all available documentation for this part.
2902955
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 6A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2902955 | 29029 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 9 mA | 3.5 - 9 mA |
| Coil Resistance | 2.667 kOhms | 2.667 - 34.29 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 - 120 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 5 - 6 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 8 - 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29029 Series
RELAY MODULE - PLC-RSC-120UC/21 ATEX
| Part | Switching Voltage | Coil Resistance | Coil Voltage | Coil Type | Contact Material | Approval Agency | Features | Operate Time | Contact Form | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Mounting Type | Contact Rating (Current) | Termination Style | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2902956 | 250 VAC, 250 VDC | 34.29 kOhms | 120 VAC, 120 VDC | Non Latching | Silver Tin Oxide (AgSnO) | CE, UKCA | Lighted Indicator, Socket Included | 6 ms | SPDT (1 Form C) | 3.5 mA | -20 C | 60 °C | 15 ms | DIN Rail | 6 A | Screw Terminal | General Purpose |
Phoenix Contact 2902955 | 250 VAC, 250 VDC | 2.667 kOhms | 24 VDC | Non Latching | Silver Tin Oxide (AgSnO) | CE, UKCA | Lighted Indicator, Socket Included | 5 ms | SPDT (1 Form C) | 9 mA | -20 C | 60 °C | 8 ms | DIN Rail | 6 A | Screw Terminal | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
29029 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
