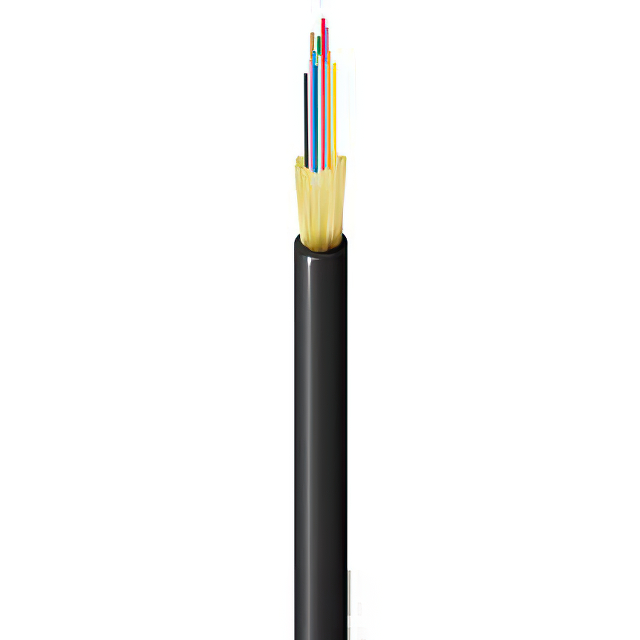

FDSD012P9
ActiveBelden Inc.
CBL FIBER OPTIC 125UM SINGLEMODE
Deep-Dive with AI
Search across all available documentation for this part.
FDSD012P9
ActiveBelden Inc.
CBL FIBER OPTIC 125UM SINGLEMODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FDSD012P9 |
|---|---|
| Bend Radius | 58.42 mm |
| Cladding Diameter [diameter] | 125 µm |
| Core Diameter [diameter] | 8.2 µm |
| Jacket (Insulation) Diameter [diameter] | 5.84 mm |
| Jacket (Insulation) Diameter [diameter] | 0.23 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Standard |
| Tensile Strength | 20.4 kg |
| Type | Singlemode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1.00 | |
| 2 | $ 0.95 | |||
| 3 | $ 0.92 | |||
| 5 | $ 0.89 | |||
| 7 | $ 0.87 | |||
| 10 | $ 0.85 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.72 | |||
Description
General part information
FDSD012 Series
Fiber Optic Cable Black Singlemode 125µm
