G-411-C8012

Active

Aearo Technologies LLC, a 3M company

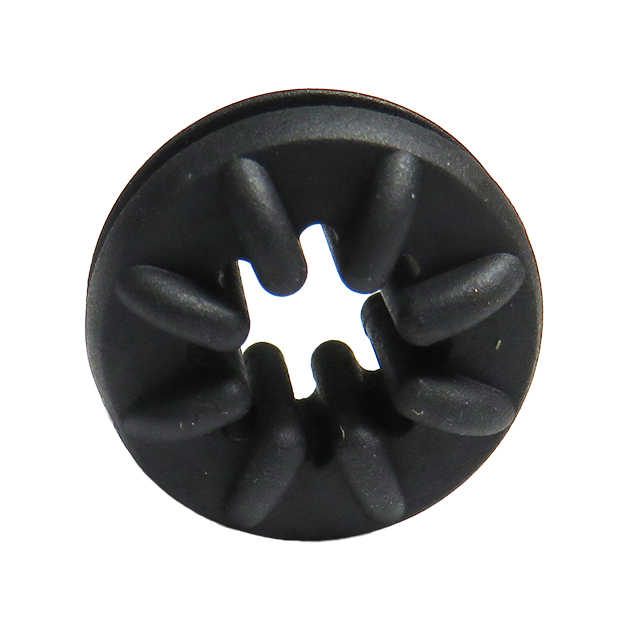

SCREW GROMMET THERMOPLASTIC BLK

Search across all available documentation for this part.

Active

Aearo Technologies LLC, a 3M company

SCREW GROMMET THERMOPLASTIC BLK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Screw Grommet Thermoplastic Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	G-411-C8012	G-411 Series

Color	Black	Blue, Black
Head Diameter [diameter]	14.3 mm	14.3 mm
Head Diameter [diameter]	0.563 in	0.563 in
Head Height	-	8.2 mm
Head Height	-	0.323 in
Material	Thermoplastic	Thermoplastic, Synthetic Rubber
Mounting Hole Diameter	9.53 mm	9.53 mm
Mounting Hole Diameter	0.375 in	0.375 in
Mounting Hole Diameter	0.375 in	0.375 in

SCREW GROMMET THERMOPLASTIC BLUE

Part	Material	Color	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Head Diameter [diameter]	Head Diameter [diameter]	Head Height [z]	Head Height [z]
Aearo Technologies LLC, a 3M company G-411-C8002	Thermoplastic	Blue	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in
Aearo Technologies LLC, a 3M company G-411-V2325	Thermoplastic	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in
Aearo Technologies LLC, a 3M company G-411-2	Thermoplastic		9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in	8.2 mm	0.323 in
Aearo Technologies LLC, a 3M company G-411-1	Thermoplastic	Blue	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in	8.2 mm	0.323 in
Aearo Technologies LLC, a 3M company G-411-C8012	Thermoplastic	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in
Aearo Technologies LLC, a 3M company G-411-SL35300	Synthetic Rubber	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in	8.2 mm	0.323 in
Aearo Technologies LLC, a 3M company G-411-V2525	Thermoplastic	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in
Aearo Technologies LLC, a 3M company G-411-SL50300	Synthetic Rubber	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in	8.2 mm	0.323 in
Aearo Technologies LLC, a 3M company G-411-SL60300	Synthetic Rubber	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in	8.2 mm	0.323 in
Aearo Technologies LLC, a 3M company G-411-V2590	Thermoplastic	Black	9.53 mm	0.375 in	0.375 in	14.3 mm	0.563 in
