FMBB-34MB-3630
ActiveSCHURTER Inc.

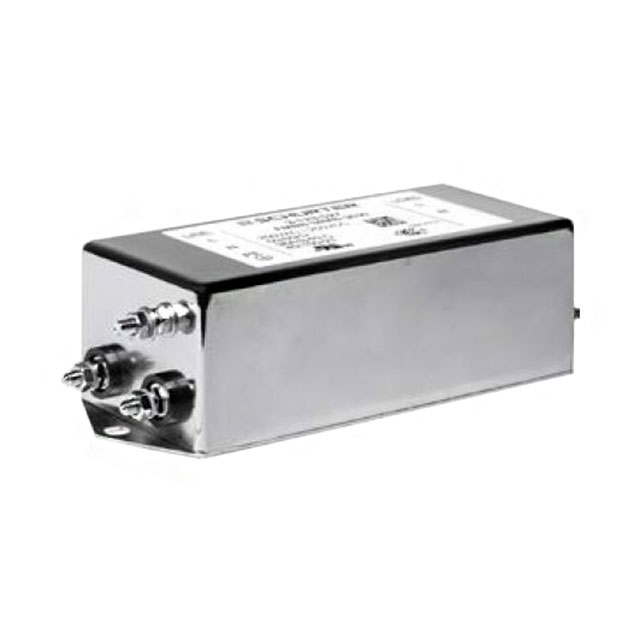

LINE FILTER 125V/250VAC 36A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FMBB-34MB-3630
ActiveSCHURTER Inc.
LINE FILTER 125V/250VAC 36A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FMBB-34MB-3630 | FMBB Series |
|---|---|---|
| Applications | General Purpose | General Purpose, Medical, Power Drive Systems, Inverters |
| Approval Agency | cURus, VDE, ENEC | cURus, VDE, ENEC |
| Configuration | Two Stage | Two Stage |
| Current | 36 A | 1 - 36 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | - | 3.5 mH |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature | - | -25 - 100 °C |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Threaded Post (M4) | Quick Connect, Threaded Post (M4), Terminal Block |
| Voltage - Rated AC | 125 V, 250 V | 125 - 250 V |
FMBB Series
LINE FILTER 125V/250VAC 20A CHAS
| Part | Current | Termination Style | Frequency - Operating [Max] | Frequency - Operating [Min] | Filter Type | Voltage - Rated AC | Applications | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Configuration | Inductance | Operating Temperature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. FMBB-34ME-2040 | 20 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | General Purpose | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-3409-0640 | 6 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | General Purpose | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-36MC-1040 | 10 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | Medical | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-3309-0340 | 3 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | Medical | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-34MC-1040 | 10 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | General Purpose | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-34MC-1240 | 12 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | General Purpose | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-33MC-1240 | 12 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | Medical | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-3609-0140 | 1 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | Medical | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-33MC-1040 | 10 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | Medical | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage | ||
SCHURTER Inc. FMBB-33ME-2040 | 20 A | Quick Connect | 60 Hz | 50 Hz | Single Phase | 125 V, 250 V | Medical | cURus, ENEC, VDE | 100 °C | -40 °C | Chassis Mount | Two Stage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 86.26 | |
| 10 | $ 83.38 | |||
| 12 | $ 80.95 | |||
| 25 | $ 80.51 | |||
| 28 | $ 75.11 | |||
| 50 | $ 77.63 | |||
| 52 | $ 74.88 | |||
| 100 | $ 74.88 | |||
Description
General part information
FMBB Series
Single Phase EMC/EMI Line Filter 36 A 125V, 250V 50/60Hz Two Stage Threaded Post (M4)
