313010-01
ActiveQualtek

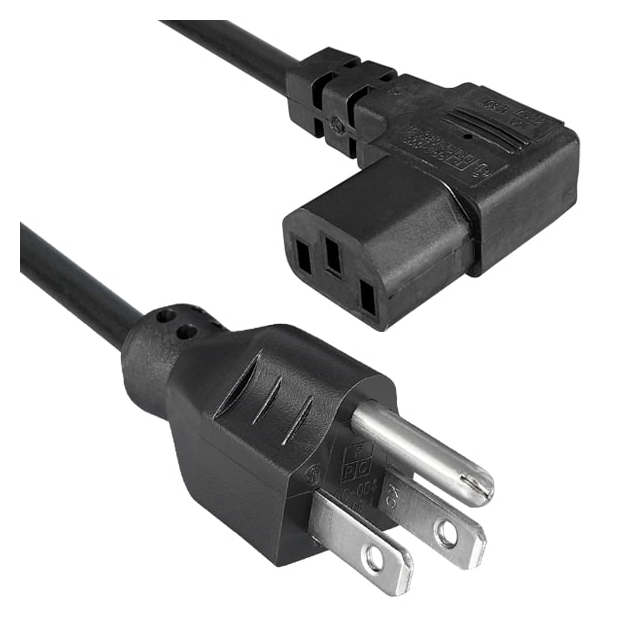

CORD 16AWG 5-15P TO C13 6.56'
Deep-Dive with AI
Search across all available documentation for this part.
313010-01
ActiveQualtek
CORD 16AWG 5-15P TO C13 6.56'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 313010-01 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C13, Right Angle |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 13 A |
| Length [x] | 2 m |
| Length [x] | 6.56 ft |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.49 | |
| 10 | $ 8.54 | |||
| 25 | $ 8.05 | |||
| 75 | $ 7.84 | |||
| 150 | $ 7.63 | |||
| 300 | $ 6.81 | |||
| 525 | $ 6.40 | |||
| 1050 | $ 5.65 | |||
Description
General part information
313010 Series
6.56' (2.00m) Power Cord Black NEMA 5-15P To IEC 320-C13, Right Angle SJT
