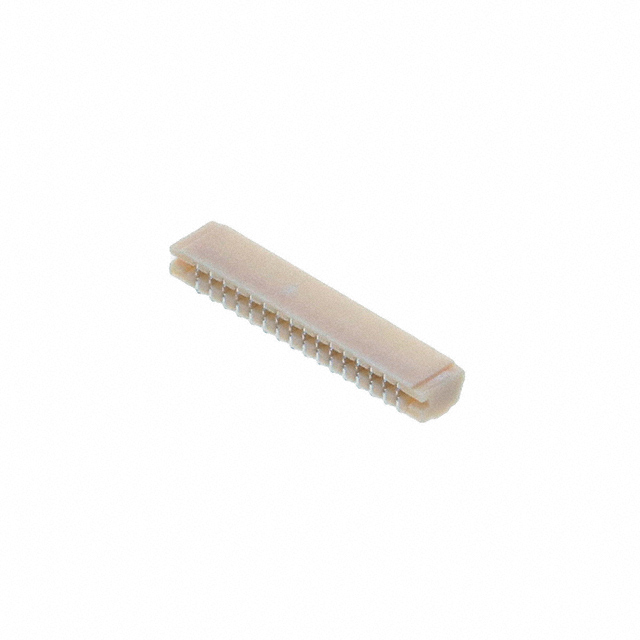

SM16B-XSRS-ETB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 16POS 0.6MM
Deep-Dive with AI
Search across all available documentation for this part.
SM16B-XSRS-ETB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 16POS 0.6MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM16B-XSRS-ETB |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Current Rating (Amps) | 0.2 A |
| Fastening Type | Friction Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.057 in |
| Insulation Height | 1.45 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.024 " |
| Pitch - Mating | 0.6 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.75 | |
| 10 | $ 1.34 | |||
| 100 | $ 1.03 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.80 | |||
| Digi-Reel® | 1 | $ 1.75 | ||
| 10 | $ 1.34 | |||
| 100 | $ 1.03 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.80 | |||
| Tape & Reel (TR) | 3500 | $ 0.71 | ||
| 7000 | $ 0.66 | |||
| 10500 | $ 0.64 | |||
Description
General part information
SM16B-XS Series
Connector Header Surface Mount, Right Angle 16 position 0.024" (0.60mm)
