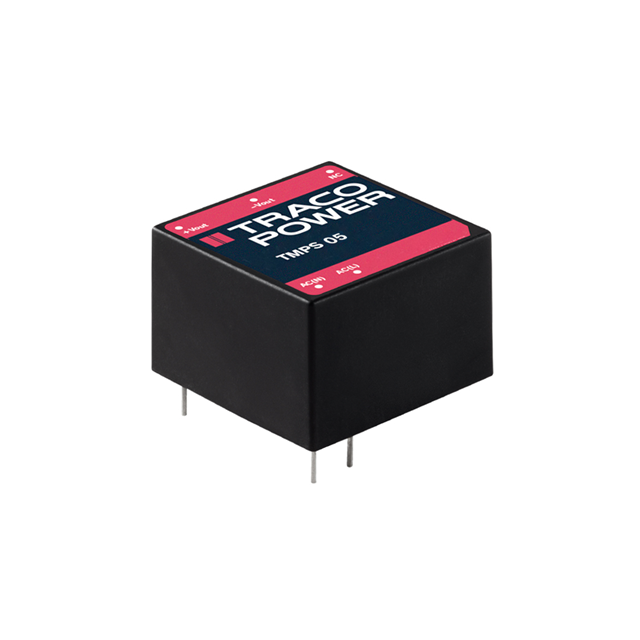

Specification	TMPS 05-105

Applications	ITE (Commercial), Household Appliances
Approval Agency	cURus, CE, CB
Current - Output (Max)	1 A
Efficiency	80 %
Features	Universal Input
Line Regulation	1 %
Load Regulation (Percent)	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Package / Case	5-DIP Module
Power (Watts)	5 W
Size / Dimension Height	0.64 in
Size / Dimension Length	1 in
Size / Dimension Width	1 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	120 V
Voltage - Output 1	5 V

TMPS 05 Series

Part	Package / Case	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Type	Voltage - Output 1	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (DC) Maximum	Efficiency	Current - Output (Max)	Number of Outputs	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Features	Mounting Type	Power (Watts)	Load Regulation (Percent)	Line Regulation
Traco Power TMPS 05-112	5-DIP Module	CB CE cURus	1 in	0.64 in	1 in	Enclosed	12 V	85 VAC	120 V	264 V	370 V	82 %	416 mA	1	Household Appliances ITE (Commercial)	70 °C	-25 °C	Universal Input	Through Hole	5 W	1 %	1 %
Traco Power TMPS 05-103	5-DIP Module	CB CE cURus	1 in	0.64 in	1 in	Enclosed	3.3 V	85 VAC	120 V	264 V	370 V	74 %	1.515 A	1	Household Appliances ITE (Commercial)	70 °C	-25 °C	Universal Input	Through Hole	5 W
Traco Power TMPS 05-105	5-DIP Module	CB CE cURus	1 in	0.64 in	1 in	Enclosed	5 V	85 VAC	120 V	264 V	370 V	80 %	1 A	1	Household Appliances ITE (Commercial)	70 °C	-25 °C	Universal Input	Through Hole	5 W	1 %	1 %
