EHMIDI2

Active

Switchcraft Inc.

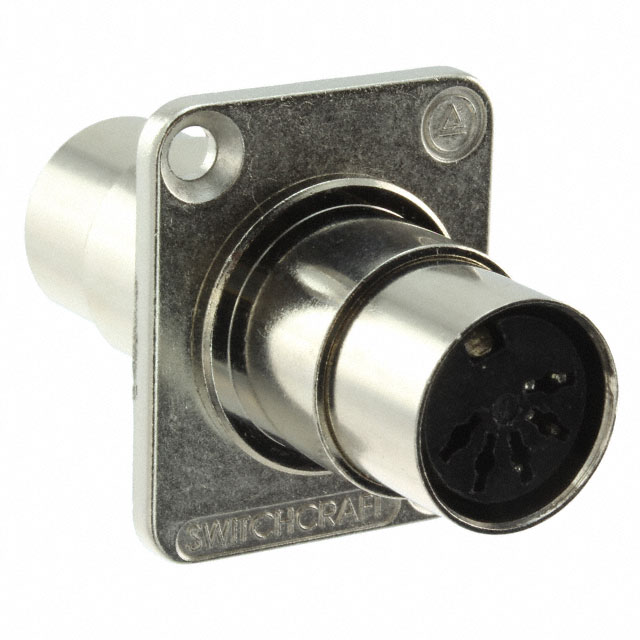

CONN ADAPTER 5P-5P F-F PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN ADAPTER 5P-5P F-F PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EHMIDI2	EHMIDI Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets	Female Sockets
Convert To (Adapter End)	Female Sockets	Female Sockets
Fastening Type	Push-Pull	Push-Pull
Features	-	Mounting Hardware
Housing Color	Silver	Silver, Black
Housing Finish	Nickel	Nickel
Housing Material	Copper Alloy	Copper Alloy
Mounting Feature	Flange	Flange
Number of Positions (Convert From)	5	5
Number of Positions (Convert To)	5	5
Orientation (Convert From)	Keyed	Keyed
Orientation (Convert To)	Keyed	Keyed
Shell Size - Insert (Convert From)	DIN	DIN
Shell Size - Insert (Convert To) [custom]	DIN	DIN
Shielding	Unshielded	Unshielded
Voltage Rating	100 VAC	100 VAC

CONN ADAPTER 5P-5P F-F PNL MNT

Part	Orientation (Convert To)	Shielding	Features	Connector Style	Shell Size - Insert (Convert To) [custom]	Fastening Type	Convert From (Adapter End)	Housing Finish	Orientation (Convert From)	Mounting Feature	Number of Positions (Convert To)	Housing Material	Voltage Rating	Housing Color	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Convert To (Adapter End)
Switchcraft Inc. EHMIDI2PKG	Keyed	Unshielded	Mounting Hardware	Standard	DIN	Push-Pull	Female Sockets	Nickel	Keyed	Flange	5	Copper Alloy	100 VAC	Silver	DIN	5	Female Sockets
Switchcraft Inc. EHMIDI2	Keyed	Unshielded		Standard	DIN	Push-Pull	Female Sockets	Nickel	Keyed	Flange	5	Copper Alloy	100 VAC	Silver	DIN	5	Female Sockets
Switchcraft Inc. EHMIDI2BPKG	Keyed	Unshielded	Mounting Hardware	Standard	DIN	Push-Pull	Female Sockets	Nickel	Keyed	Flange	5	Copper Alloy	100 VAC	Black	DIN	5	Female Sockets
